Our Products

Complete Range

Precision Brass Components

Browse by category to view the complete product range, technical details, packaging information, and the corresponding catalog image for each fitting.

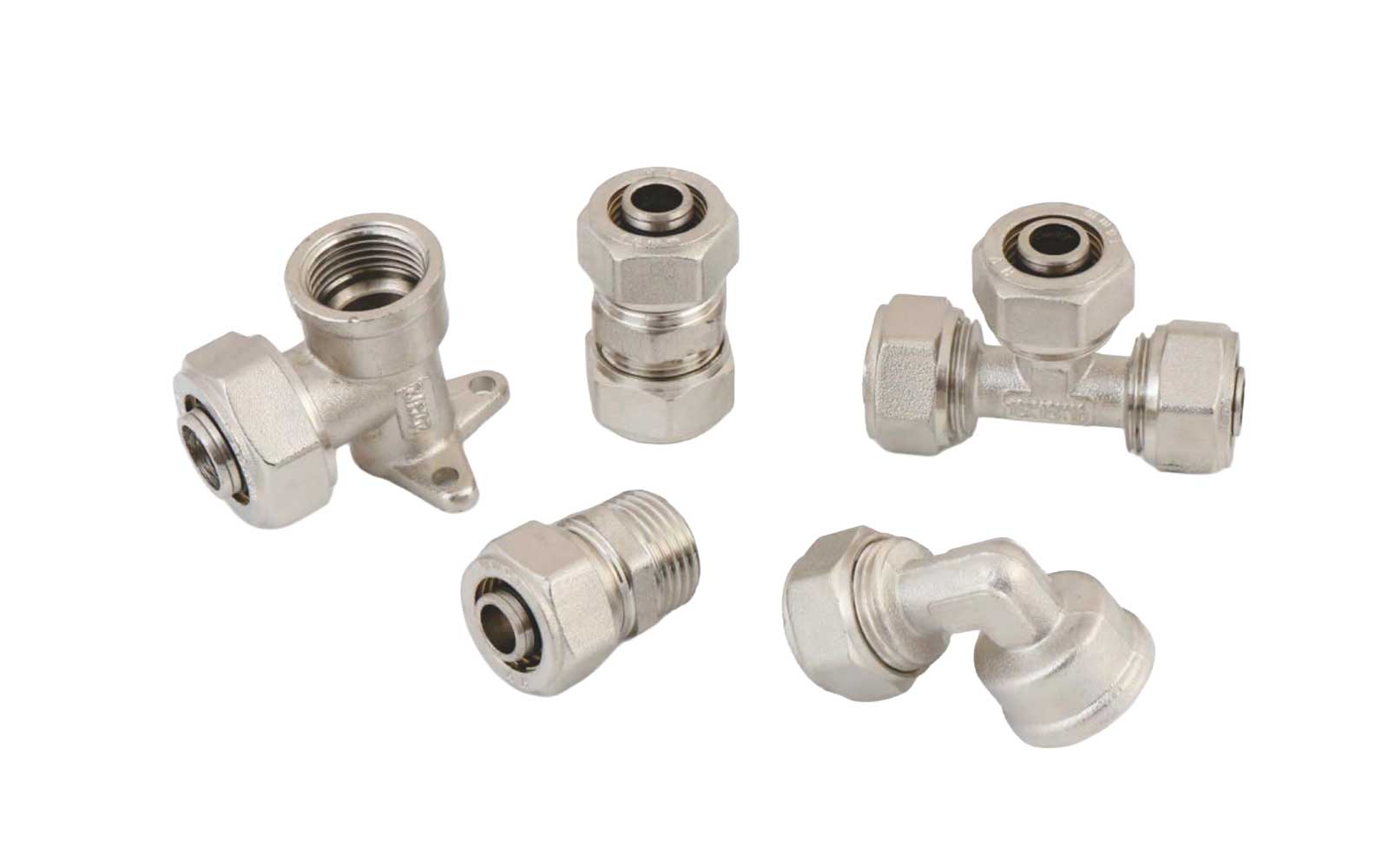

Brass Compression Fittings for PEX-AL-PEX Pipe

Brass Compression Fittings for PEX-AL-PEX Pipe

♦ For use with PEX-AL-PEX pipe connecting
♦ Brass Material CW617N in accordance with EN12164
♦ DZR Brass Material CW602N-EN12164/CZ132-BS6017 comply to Dezincification Resistant Test defined by ISO 6509 and AS2345
♦ Other special alloy required by Customers
♦ Working Pressure 1.6MPa / 16 Bar
♦ Working Temperature -10°C to 110°C
♦ Original color or Nickel Plating Finish without burrs

Products In This Category

10 main products listed. All ITEM NO. variant information is shown directly below each product.

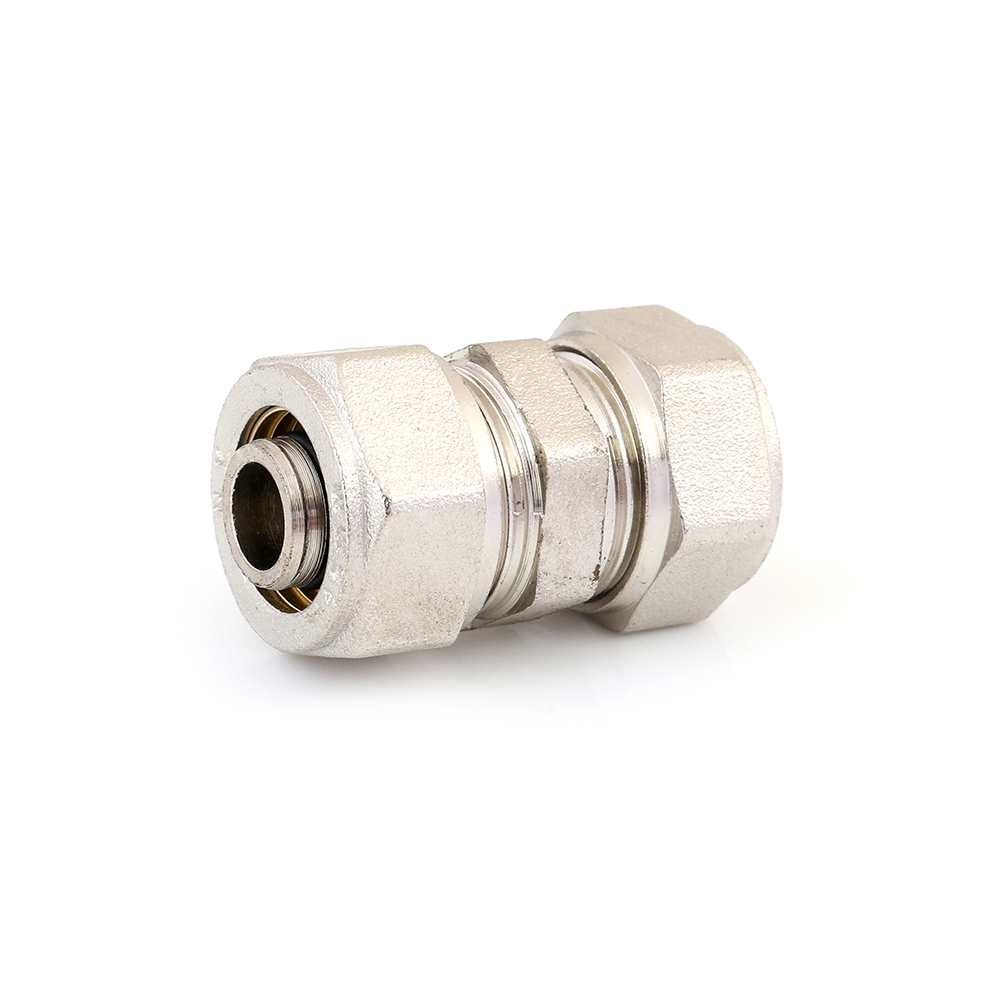

Coupling 7 variants

Coupling

Brass Compression Fittings for PEX-AL-PEX Pipe
COMPRESSIION FITTING FOR PEX-AL-PEX PIPE
Item No. SIZE PCS/BAG PCS/CARTON
STDB-200-15 S16*16 10 300
STDB-200-16 S20*20 10 240
STDB-200-17 S25*25 5 160
STDB-200-18 S32*32 5 80
STDB-200-19 S16*20 10 240
STDB-200-20 S20*25 10 160
STDB-200-21 S25*32 5 80

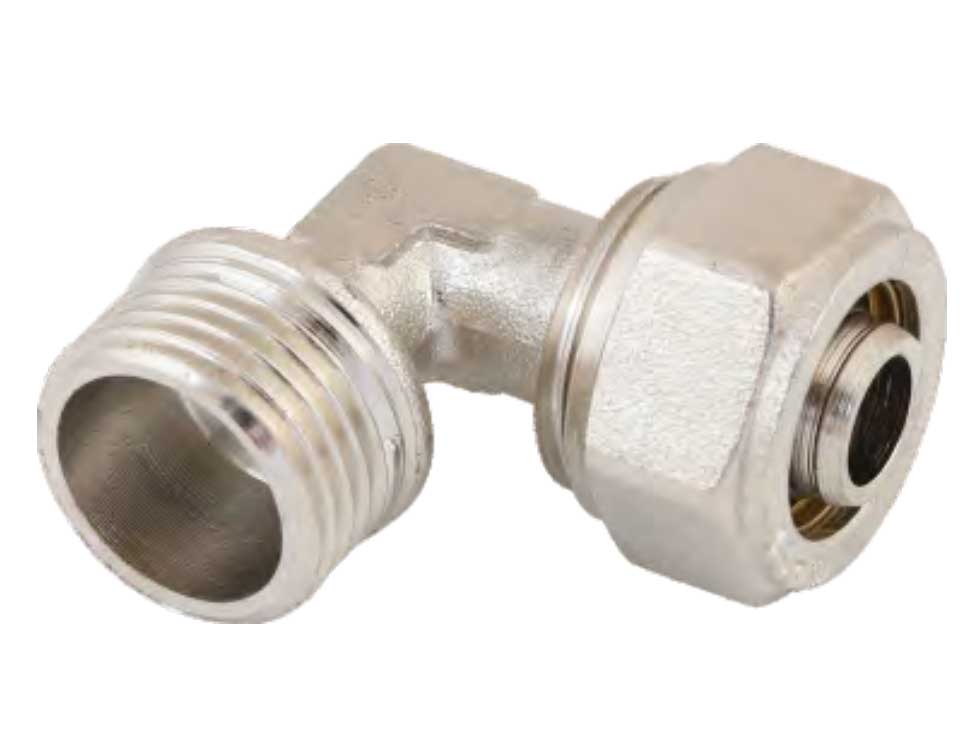

Male Elbow 8 variants

Male Elbow

Brass Compression Fittings for PEX-AL-PEX Pipe
COMPRESSIION FITTING FOR PEX-AL-PEX PIPE
Item No. SIZE PCS/BAG PCS/CARTON
STDB-200-22 L16*1/2"M 10 150
STDB-200-23 L16*3/4"M 10 120
STDB-200-24 L20*1/2"M 10 150
STDB-200-25 L20*3/4"M 10 130
STDB-200-26 L25*3/4"M 5 120
STDB-200-27 L25*1"M 5 120
STDB-200-28 L32*1"M 5 80
STDB-200-29 L16*1/2"F 10 150

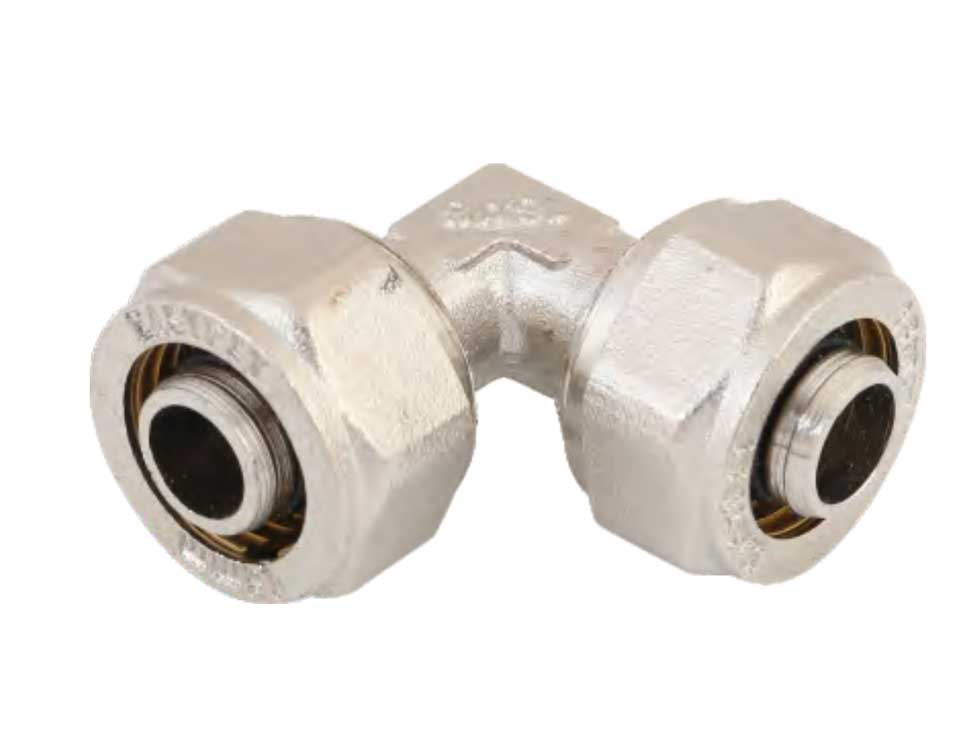

Elbow 5 variants

Elbow

Brass Compression Fittings for PEX-AL-PEX Pipe
COMPRESSIION FITTING FOR PEX-AL-PEX PIPE
Item No. SIZE PCS/BAG PCS/CARTON
STDB-200-35 L16*16 10 150
STDB-200-36 L20*20 10 80
STDB-200-37 L25*25 5 120
STDB-200-38 L32*32 5 60
STDB-200-39 L16*20 10 120

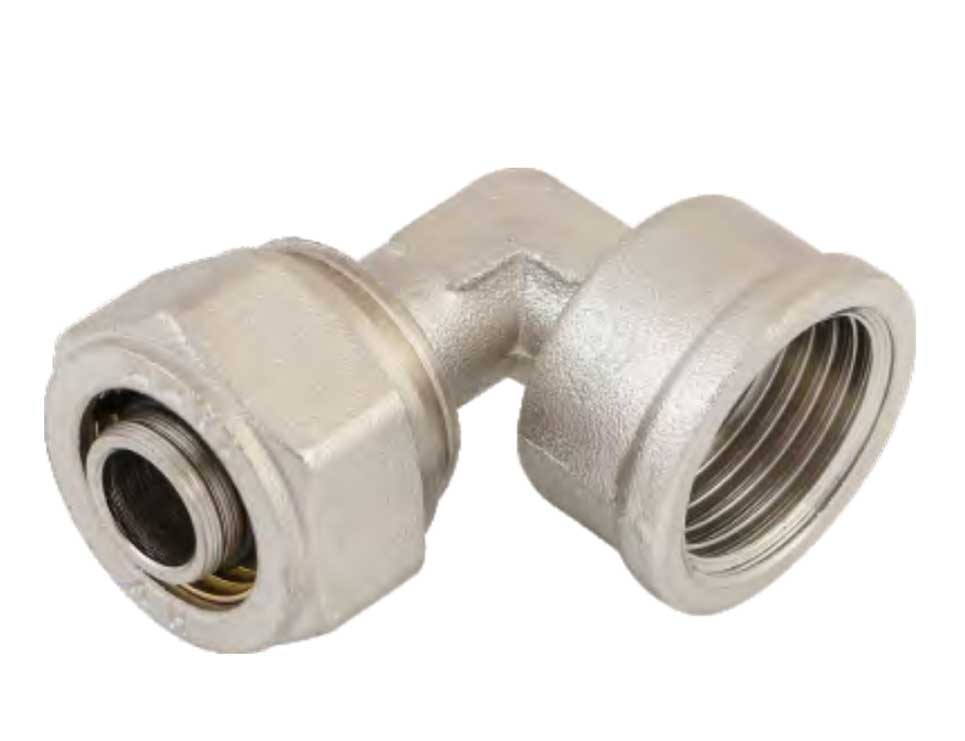

Female Elbow 5 variants

Female Elbow

Brass Compression Fittings for PEX-AL-PEX Pipe
COMPRESSIION FITTING FOR PEX-AL-PEX PIPE
Item No. SIZE PCS/BAG PCS/CARTON
STDB-200-30 L16*3/4"F 10 120
STDB-200-31 L20*1/2"F 10 100
STDB-200-32 L20*3/4"F 10 80
STDB-200-33 L25*3/4"F 5 80
STDB-200-34 L25*1"F 5 80

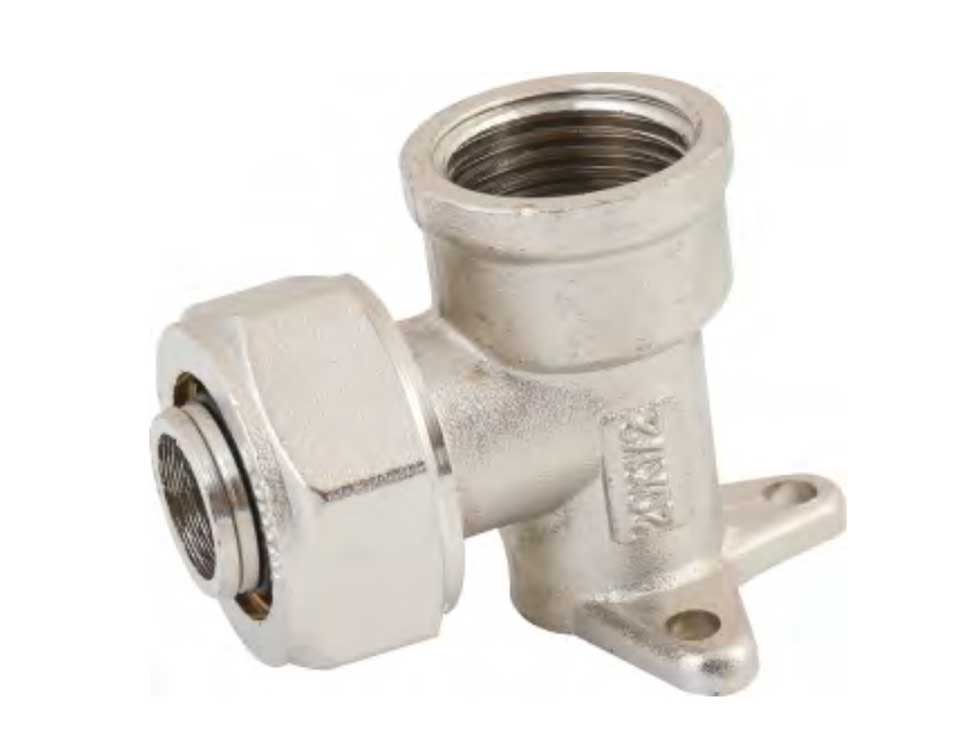

Female Elbow With Plated Compressiion 3 variants

Female Elbow With Plated Compressiion

Brass Compression Fittings for PEX-AL-PEX Pipe
COMPRESSIION FITTING FOR PEX-AL-PEX PIPE
Item No. SIZE PCS/BAG PCS/CARTON
STDB-200-60 ZL16*1/2"F 10 100
STDB-200-61 ZL20*1/2"F 10 100
STDB-200-62 ZL20*3/4"F 10 80

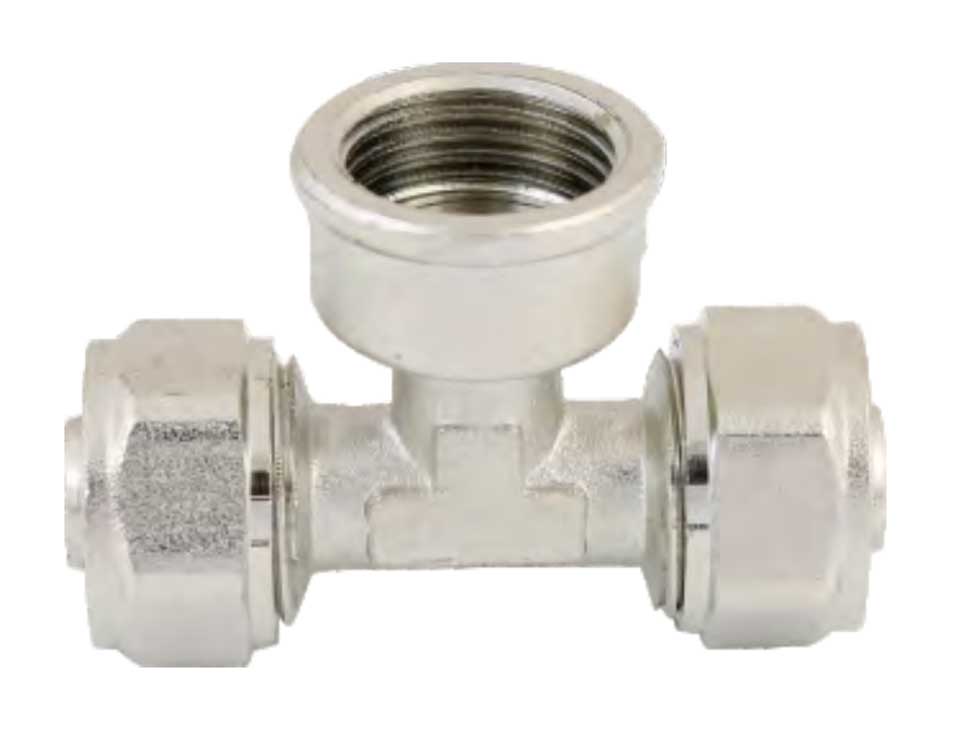

Female Tee 6 variants

Female Tee

Brass Compression Fittings for PEX-AL-PEX Pipe
COMPRESSIION FITTING FOR PEX-AL-PEX PIPE
Item No. SIZE PCS/BAG PCS/CARTON
STDB-200-46 T16*1/2"F*16 10 80
STDB-200-47 L16*3/4"F*16 10 80
STDB-200-48 T20*1/2"F*20 10 60
STDB-200-49 T20*3/4"F*20 10 50
STDB-200-50 T25*3/4"F*25 5 50
STDB-200-51 T25*1"F*25 5 50

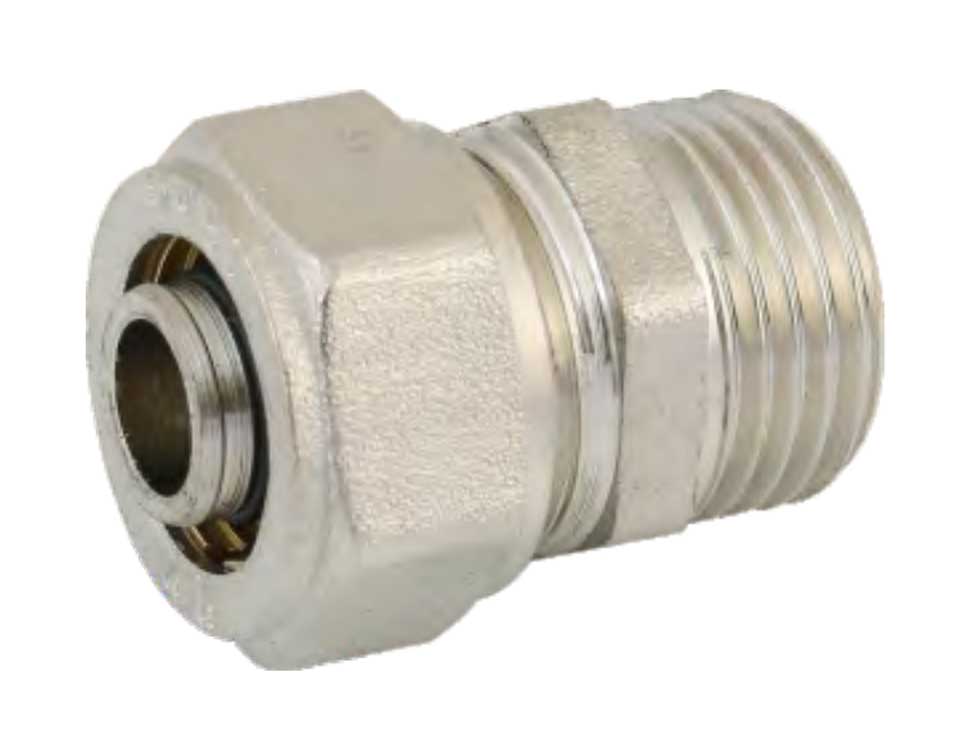

Male Coupling 7 variants

Male Coupling

Brass Compression Fittings for PEX-AL-PEX Pipe
COMPRESSIION FITTING FOR PEX-AL-PEX PIPE
Item No. SIZE PCS/BAG PCS/CARTON
STDB-200-01 S16*1/2"M 10 250
STDB-200-02 S16*3/4"M 10 200
STDB-200-03 S20*1/2"M 10 150
STDB-200-04 S20*3/4"M 10 130
STDB-200-05 S25*3/4"M 5 160
STDB-200-06 S25*1"M 5 120
STDB-200-07 S32*1"M 5 100

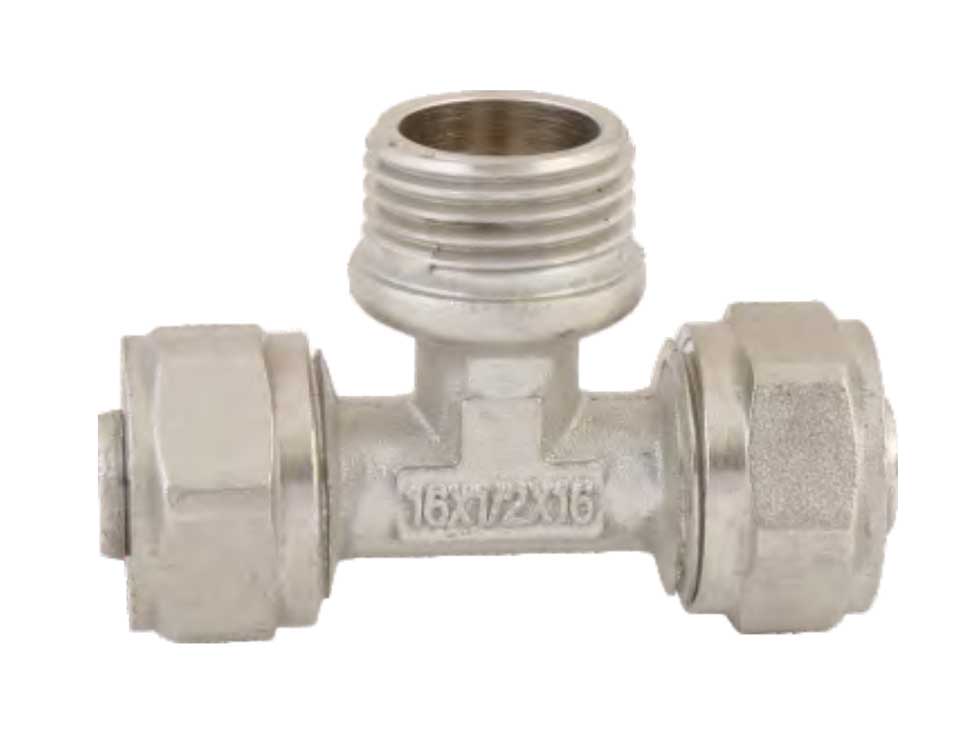

Male Tee 5 variants

Male Tee

Brass Compression Fittings for PEX-AL-PEX Pipe
COMPRESSIION FITTING FOR PEX-AL-PEX PIPE
Item No. SIZE PCS/BAG PCS/CARTON
STDB-200-40 T16*1/2"M*16 10 100
STDB-200-41 T16*3/4"M*16 10 100
STDB-200-42 T20*1/2"M*20 10 100
STDB-200-43 T20*3/4"M*20 10 60
STDB-200-44 T25*3/4"M*25 5 50

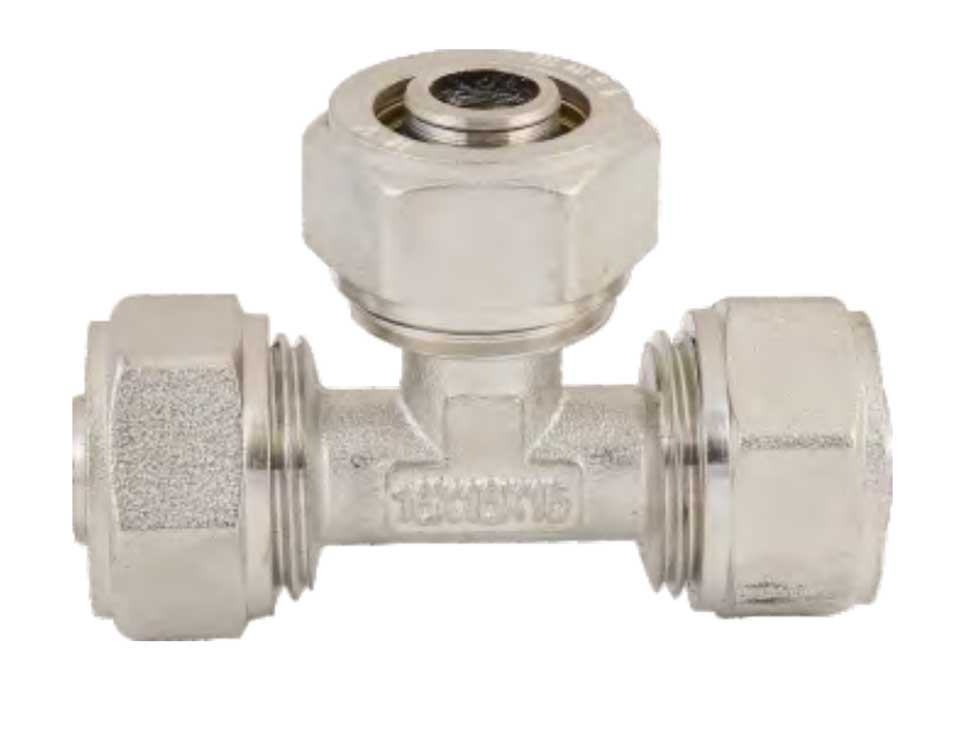

Tee 7 variants

Tee

Brass Compression Fittings for PEX-AL-PEX Pipe
COMPRESSIION FITTING FOR PEX-AL-PEX PIPE
Item No. SIZE PCS/BAG PCS/CARTON
STDB-200-52 T16*16*16 10 100
STDB-200-53 T16*16*20 10 100
STDB-200-54 T20*20*20 10 60
STDB-200-55 T16*20*16 10 100
STDB-200-56 T20*16*20 10 100
STDB-200-57 T25*25*25 5 80
STDB-200-58 T25*20*25 10 80

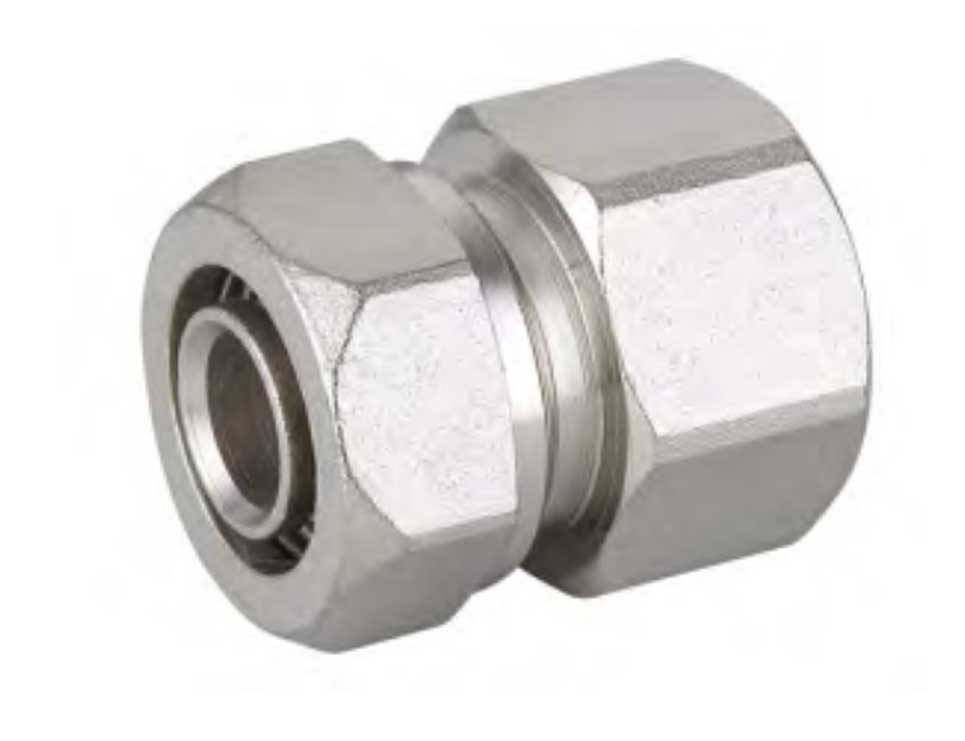

Female Coupling 4 variants

Female Coupling

Brass Compression Fittings for PEX-AL-PEX Pipe
COMPRESSIION FITTING FOR PEX-AL-PEX PIPE
Item No. SIZE PCS/BAG PCS/CARTON
STDB-200-09 S16*3/4"F 10 180
STDB-200-11 S20*3/4"F 10 130
STDB-200-12 S25*3/4"F 5 150
STDB-200-14 S32*1"F 5 60
