Our Products

Complete Range

Precision Brass Components

Browse by category to view the complete product range, technical details, packaging information, and the corresponding catalog image for each fitting.

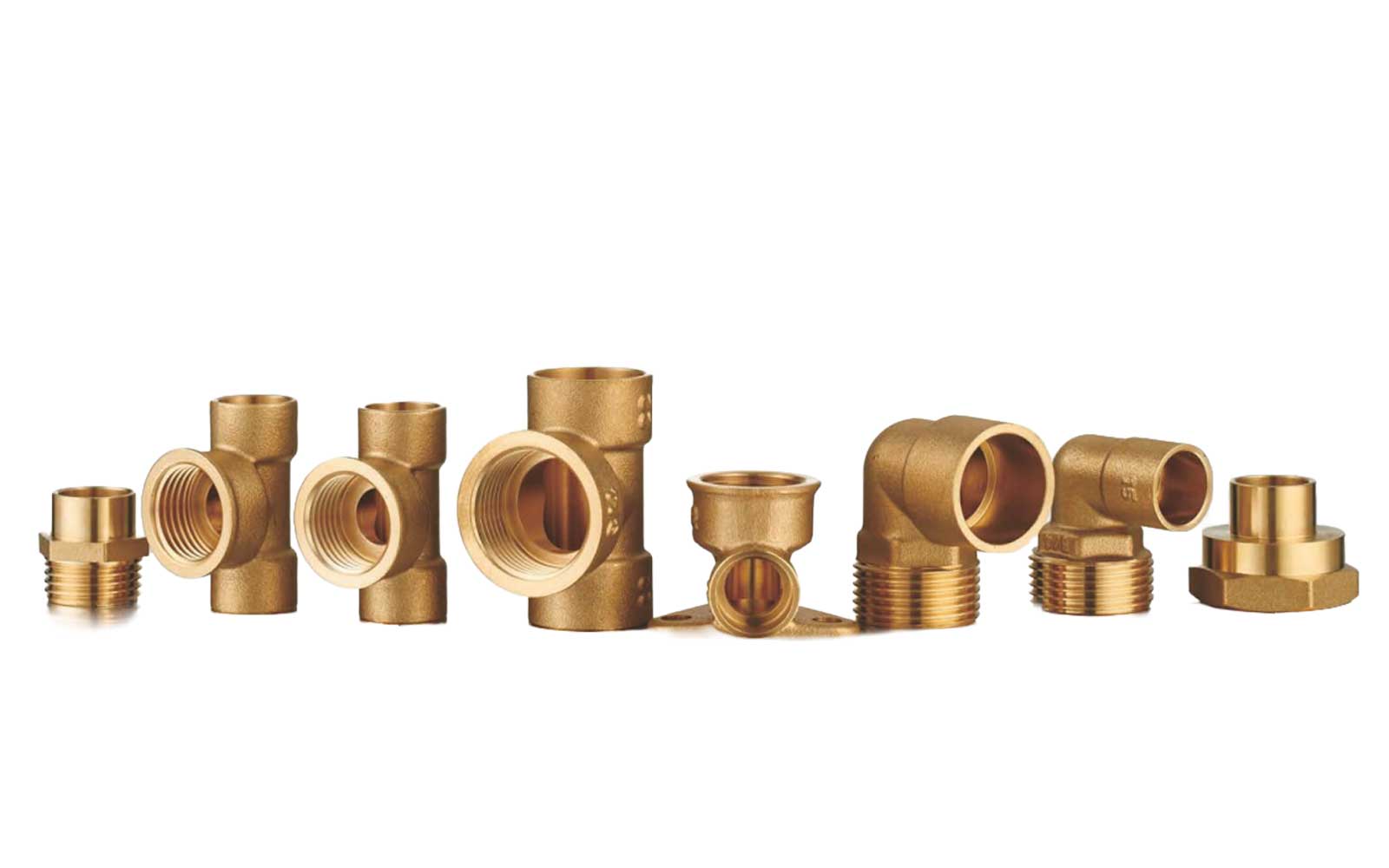

Brass Capillary Soldering Fittings

Brass Capillary Soldering Fittings

♦ Executive Standard EN1254-1. Thread Standard according to ISO228-1
♦ For use with copper tube connecting by soldering
♦ Brass Material CW617N in accordance with EN12164
♦ DZR Brass Material CW602N-EN12164/CZ132-BS6017 comply to Dezincification Resistant Test defined by ISO 6509 and AS2345
♦ Other special alloy required by Customers
♦ Working Pressure Max 16 Bar under 110°C
♦ Working Temperature Max 110°C
♦ Original color Finish without burrs

Products In This Category

5 main products listed. All ITEM NO. variant information is shown directly below each product.

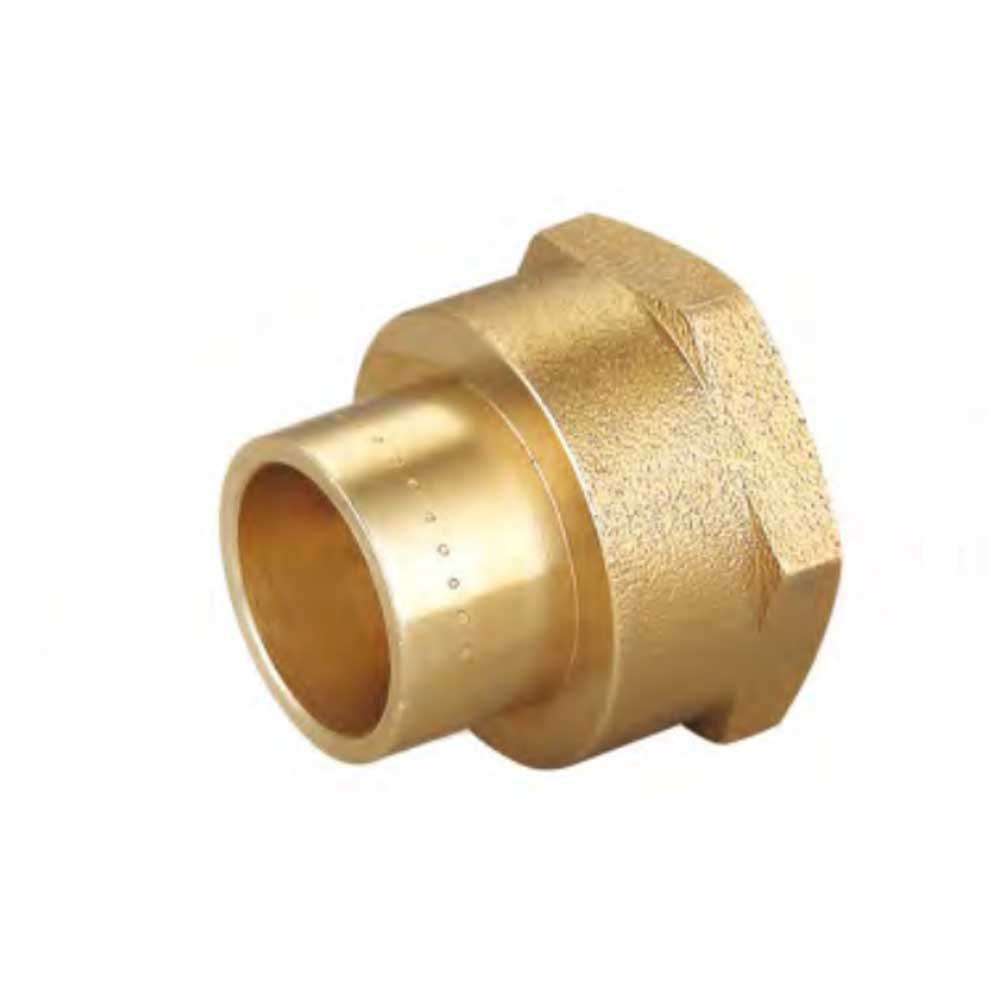

Female Straight Connectors 16 variants

Female Straight Connectors

Brass Capillary Soldering Fittings
Female Straight Connectors in Brass Capillary Soldering Fittings
Item No. SIZE PCS/BAG PCS/CARTON
STDB-600-07 15*1/2"F 25 475
STDB-600-08 15*3/4"F 25 300
STDB-600-09 16*3/8"F 25 575
STDB-600-10 16*1/2"F 25 475
STDB-600-11 16*3/4"F 25 300
STDB-600-12 18*1/2"F 25 375
STDB-600-13 18*3/4"F 25 275
STDB-600-14 22*1/2"F 25 300
STDB-600-16 22*3/4"F 10 200
STDB-600-17 22*1"F 10 150
STDB-600-18 28*1/2"F 10 200
STDB-600-19 28*3/4"F 10 150
STDB-600-20 28*1"F 10 110
STDB-600-21 28*1-1/4"F 5 90
STDB-600-22 32*1-1/4"F 5 70
STDB-600-24 35*1-1/4"F 5 70

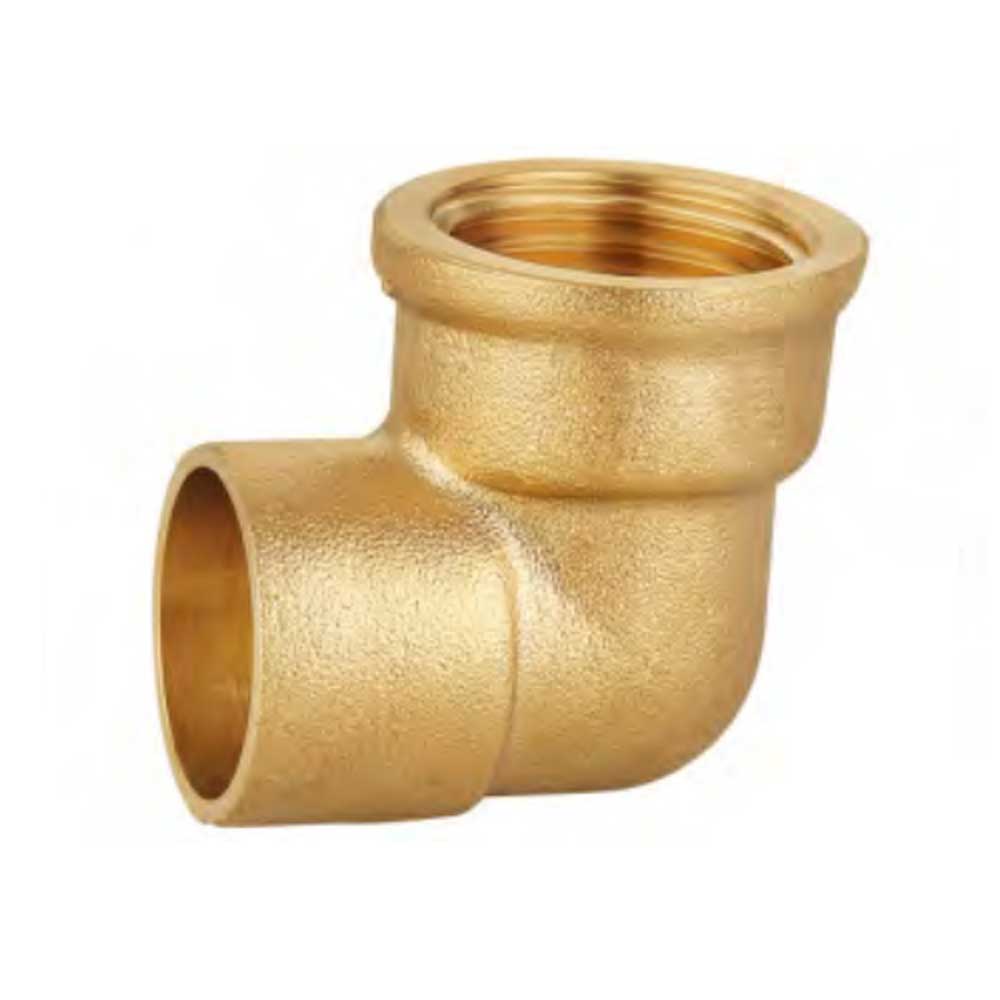

Female Elbows 13 variants

Female Elbows

Brass Capillary Soldering Fittings
Female Elbows in Brass Capillary Soldering Fittings
Item No. SIZE PCS/BAG PCS/CARTON
STDB-600-43 15*1/2"F 25 300
STDB-600-44 15*3/4"F 25 200
STDB-600-45 16*1/2"F 25 300
STDB-600-46 16*3/4"F 10 200
STDB-600-47 18*1/2"F 25 250
STDB-600-48 18*3/4"F 10 160
STDB-600-49 22*1/2"F 10 160
STDB-600-50 22*3/4"F 10 130
STDB-600-51 22*1"F 10 100
STDB-600-52 28*3/4"F 10 90
STDB-600-53 28*1"F 5 70
STDB-600-54 28*1-1/4"F 5 55
STDB-600-55 35*1-1/4"F 5 50

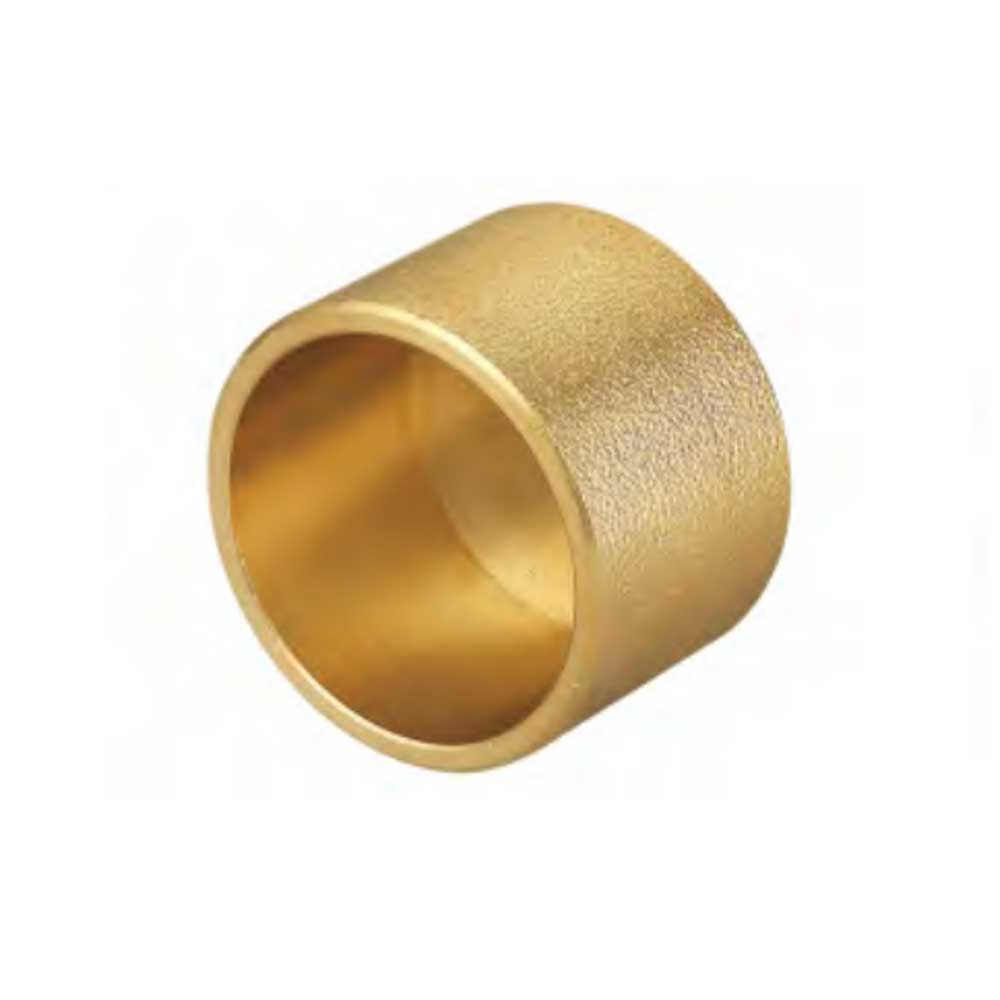

Caps 4 variants

Caps

Brass Capillary Soldering Fittings
Caps in Brass Capillary Soldering Fittings
Item No. SIZE PCS/BAG PCS/CARTON
STDB-600-01 15 25 1000
STDB-600-02 18 10 650
STDB-600-03 22 10 420
STDB-600-04 28 5 200

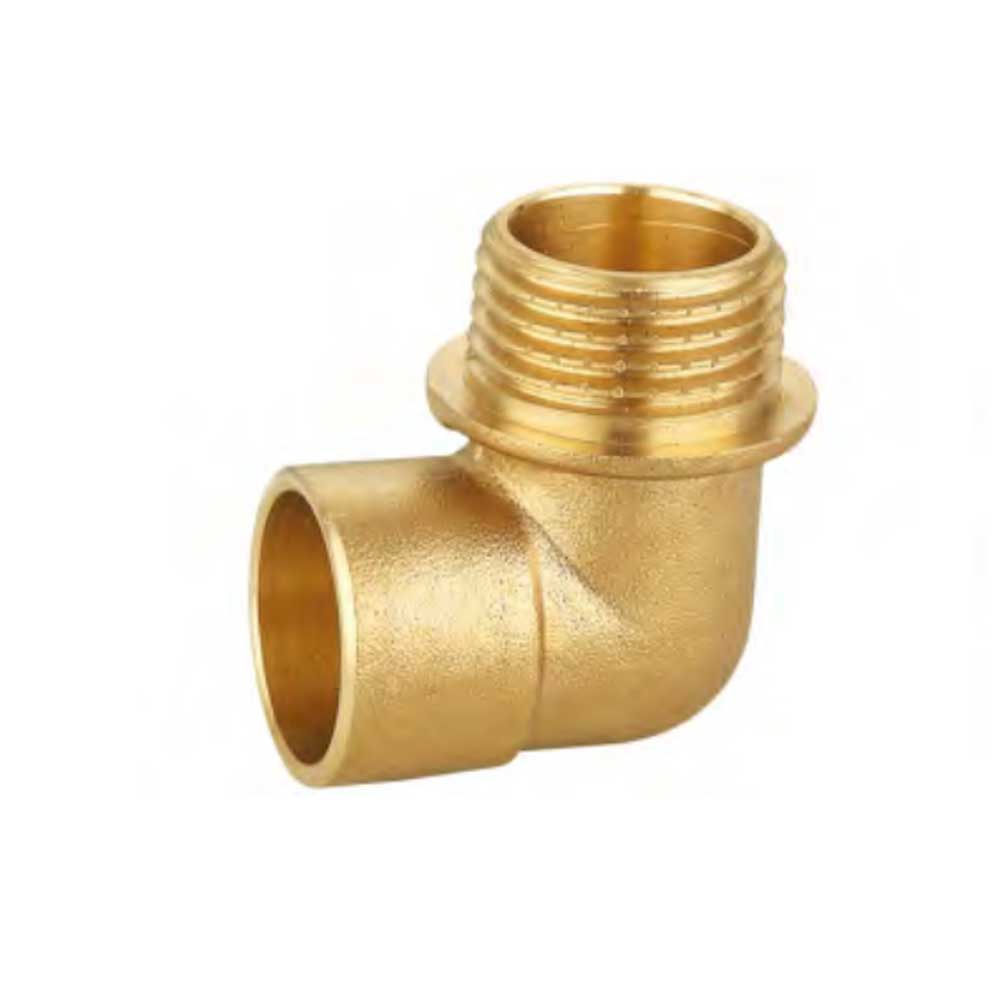

Male Elbows 12 variants

Male Elbows

Brass Capillary Soldering Fittings
Male Elbows in Brass Capillary Soldering Fittings
Item No. SIZE PCS/BAG PCS/CARTON
STDB-600-61 15*1/2"M 25 300
STDB-600-62 15*3/4"M 25 200
STDB-600-63 16*1/2"M 25 300
STDB-600-64 16*3/4"M 10 230
STDB-600-65 18*1/2"M 25 250
STDB-600-66 18*3/4"M 10 170
STDB-600-67 22*1/2"M 10 160
STDB-600-68 22*3/4"M 10 130
STDB-600-69 22*1"M 10 100
STDB-600-70 28*3/4"M 10 100
STDB-600-71 28*1"M 5 90
STDB-600-72 35*1-1/4"M 5 40

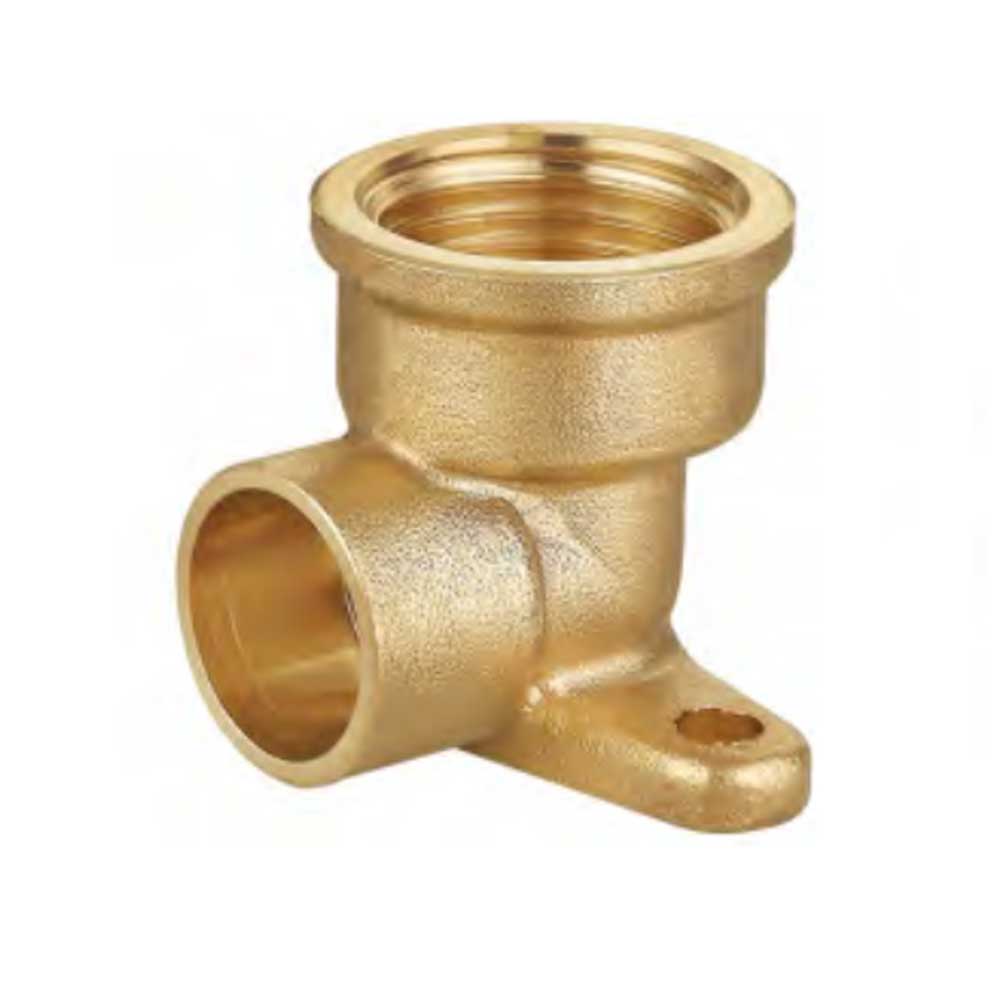

Wallplate Elbows 6 variants

Wallplate Elbows

Brass Capillary Soldering Fittings
Wallplate Elbows in Brass Capillary Soldering Fittings
Item No. SIZE PCS/BAG PCS/CARTON
STDB-600-77 15*1/2"F 10 220
STDB-600-78 15*3/4"F 10 120
STDB-600-79 18*1/2"F 10 180
STDB-600-80 18*3/4"F 10 120
STDB-600-81 22*1/2"F 10 120
STDB-600-82 22*3/4"F 10 110
