Our Products

Complete Range

Precision Brass Components

Browse by category to view the complete product range, technical details, packaging information, and the corresponding catalog image for each fitting.

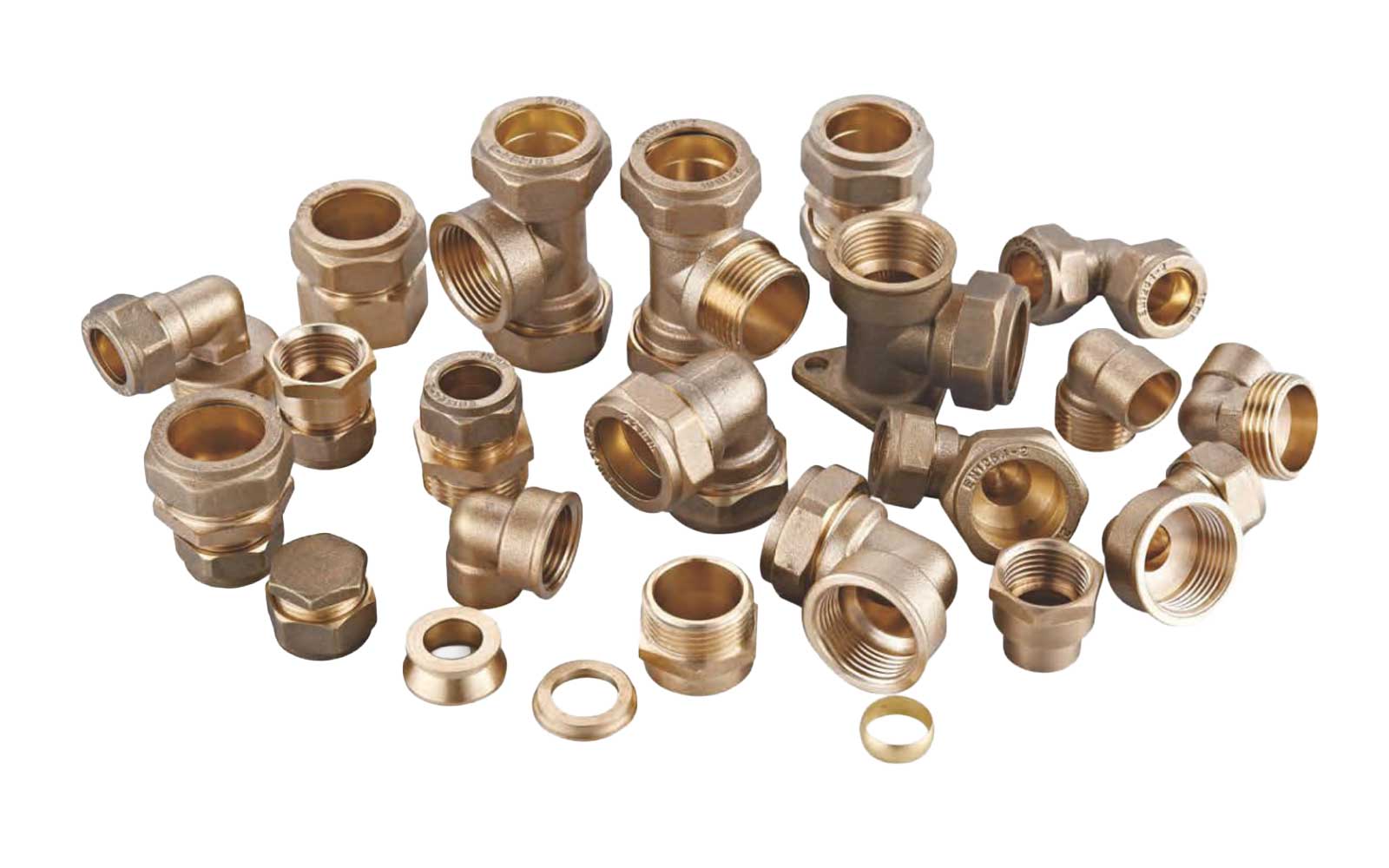

Brass Compression Fittings for Copper Tube

Brass Compression Fittings for Copper Tube

♦ Executive Standard EN1254-2. Thread Standard according to ISO228-1
♦ For use with copper tube connecting and used extensively for residential and commercial-grade water supplying
♦ Brass Material CW617N in accordance with EN12164
♦ DZR Brass Material CZ132-BS6017/CW602N-EN12164 comply to Dezincification Resistant Test defined by ISO 6509 and AS2345
♦ Other special alloy required by Customers
♦ Working Pressure Max 16 Bar under 120°C
♦ Working Temperature Max 120°C
♦ Original color or Chrome plating Finish without burrs

Products In This Category

18 main products listed. All ITEM NO. variant information is shown directly below each product.

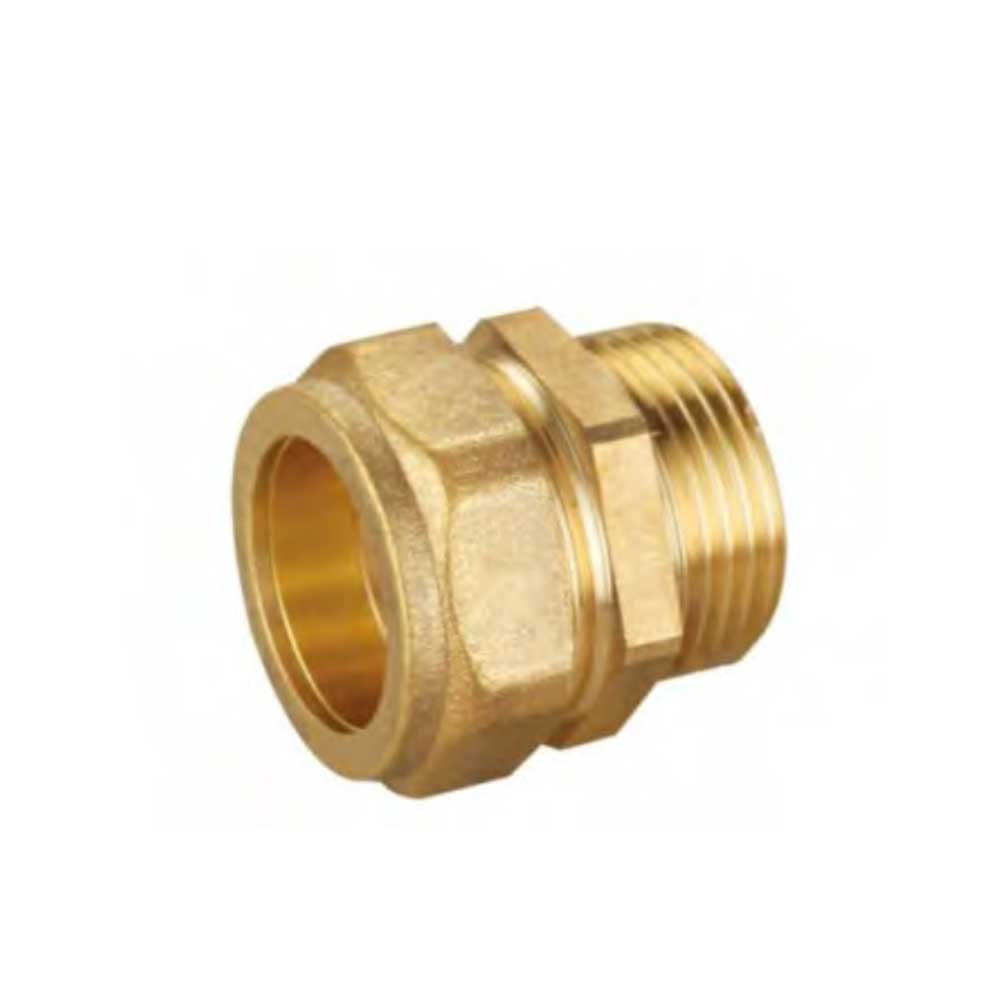

Male Straight Connectors 11 variants

Male Straight Connectors

Brass Compression Fittings for Copper Tube
Male Straight Connectors in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-46 15*1/2''M 10 300
STDB-500-47 15*3/4''M 10 180
STDB-500-48 22*1/2''M 10 150
STDB-500-49 22*3/4''M 10 140
STDB-500-50 22*1''M 10 110
STDB-500-51 22*1-1/4''M 10 75
STDB-500-52 28*3/4''M 10 100
STDB-500-53 28*1''M 5 80
STDB-500-54 35*1-1/4''M 5 50
STDB-500-55 42*1-1/2''M 5 25
STDB-500-56 54*2''M 5 25
Straight Reducing Couplings 6 variants

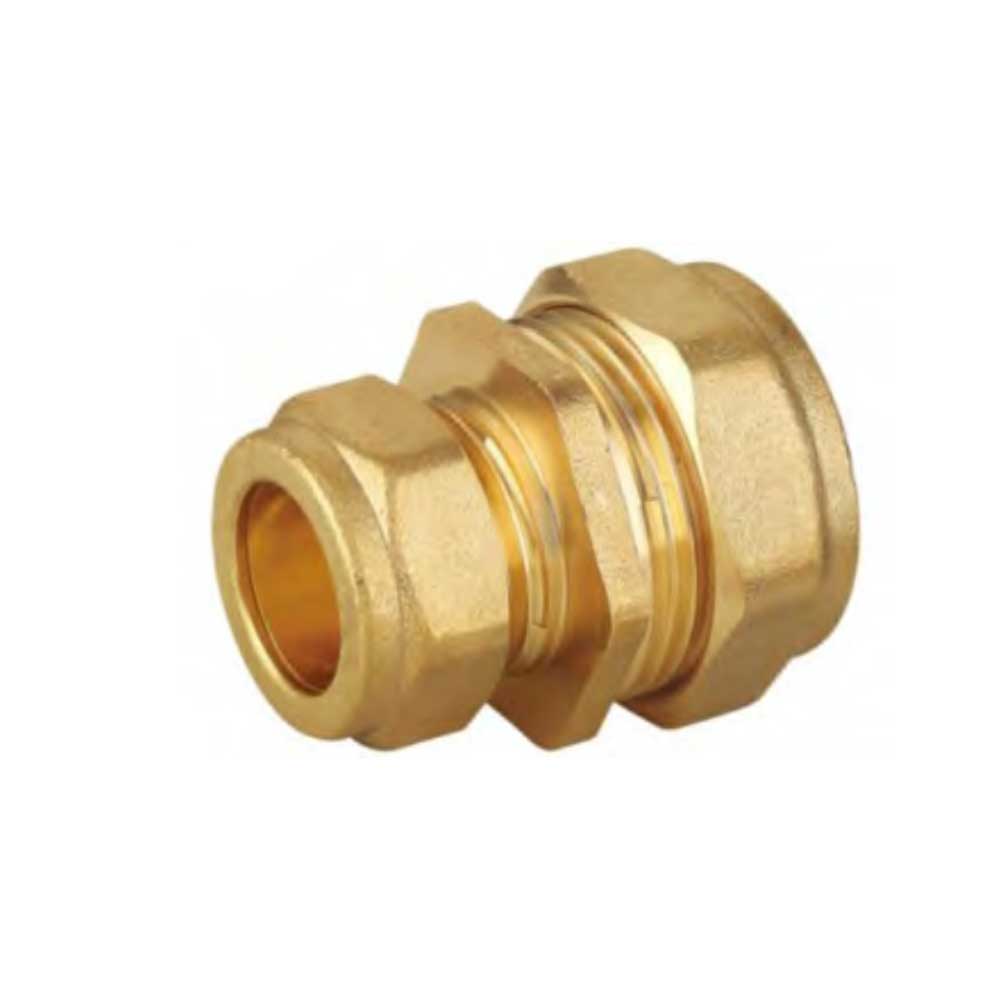

Straight Reducing Couplings

Brass Compression Fittings for Copper Tube
Straight Reducing Couplings in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-05 16*15 10 220
STDB-500-06 22*15 10 150
STDB-500-07 28*15 10 120
STDB-500-08 28*22 10 100
STDB-500-09 35*22 10 40
STDB-500-10 35*28 5 40
Female Straight Connectors 12 variants

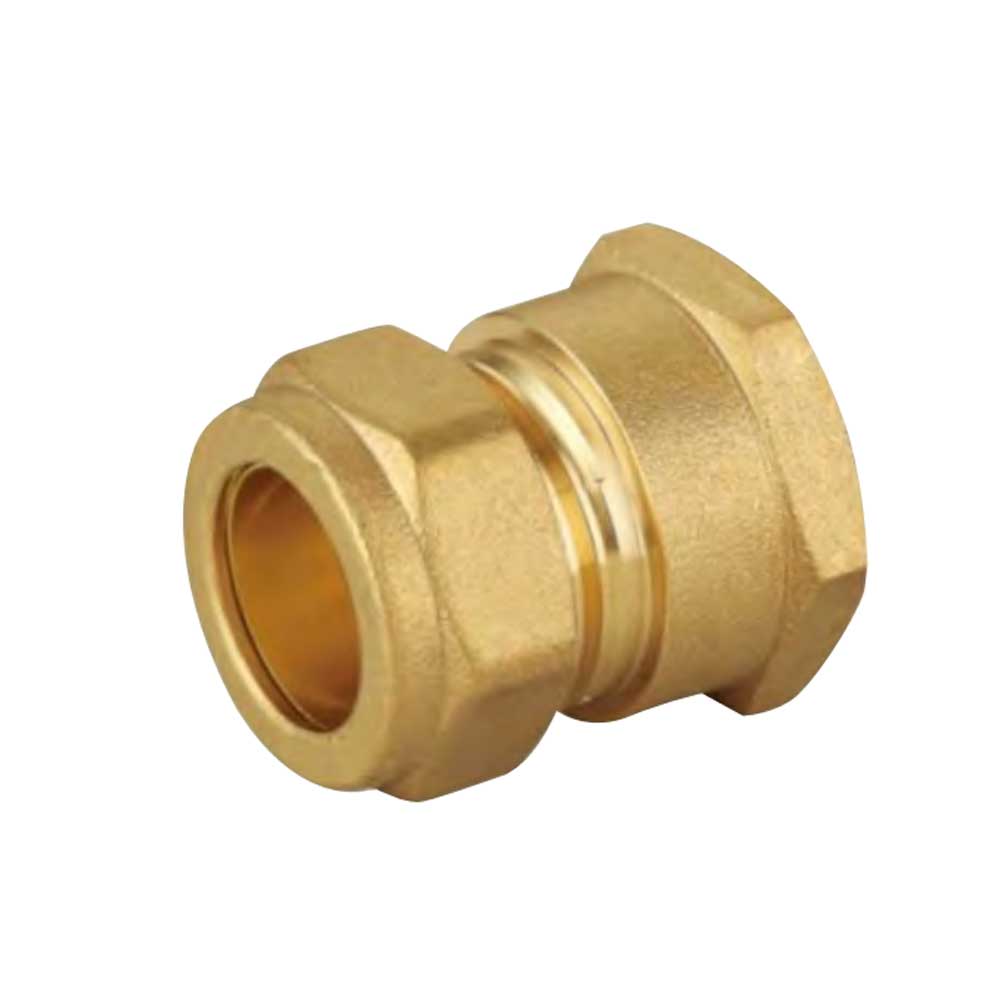

Female Straight Connectors

Brass Compression Fittings for Copper Tube
Female Straight Connectors in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-11 15*1/2''F 10 220
STDB-500-12 15*3/4''F 10 180
STDB-500-13 15*1''F 10 100
STDB-500-14 22*1/2''F 10 150
STDB-500-15 22*3/4''F 10 140
STDB-500-16 22*1''F 10 100
STDB-500-17 28*1/2''F 10 80
STDB-500-18 28*3/4''F 10 80
STDB-500-19 28*1''F 10 80
STDB-500-20 35*1-1/4''F 5 40
STDB-500-21 42*1-1/2''F 5 35
STDB-500-22 54*2''F 5 20
Elbows 9 variants

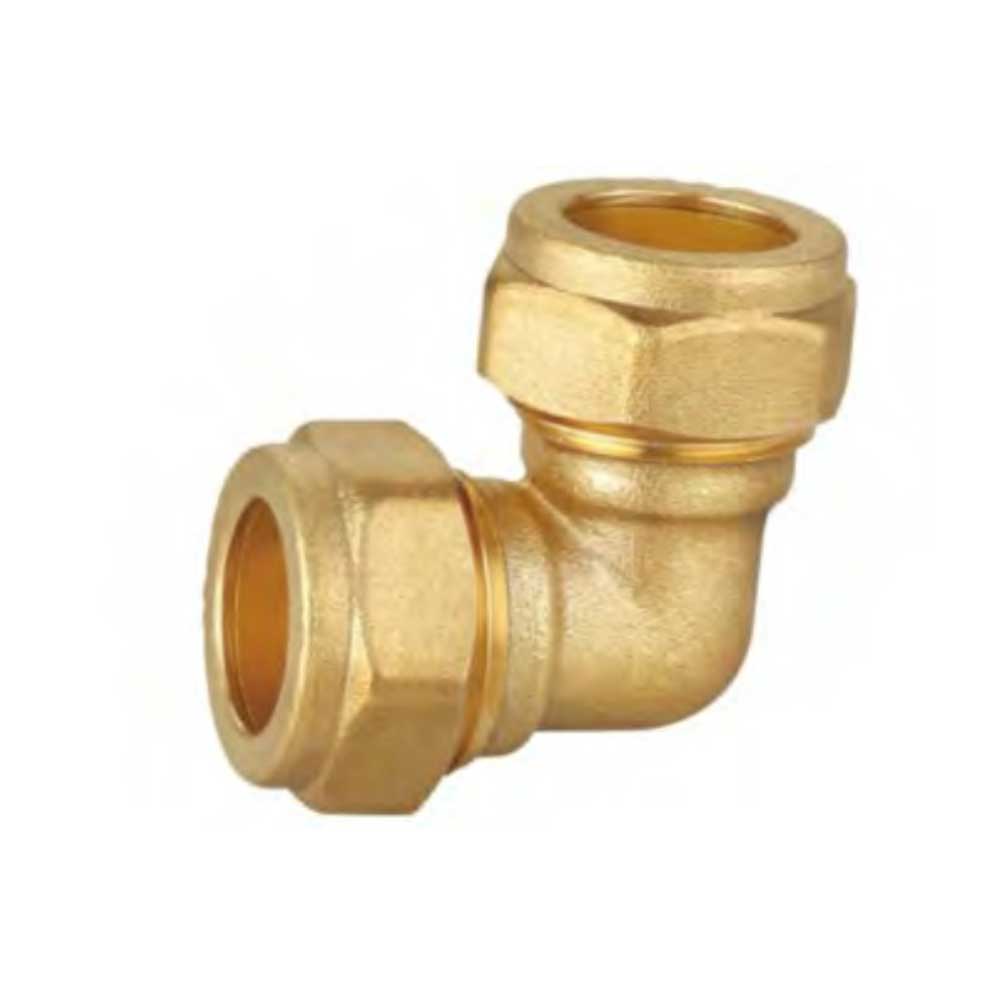

Elbows

Brass Compression Fittings for Copper Tube
Elbows in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-67 15*15 10 200
STDB-500-68 22*15 10 120
STDB-500-69 22*22 10 90
STDB-500-70 28*15 10 60
STDB-500-71 28*22 10 60
STDB-500-72 28*28 10 60
STDB-500-73 35*35 5 30
STDB-500-74 42*42 1 20
STDB-500-75 54*54 1 10
Straight Couplings 4 variants

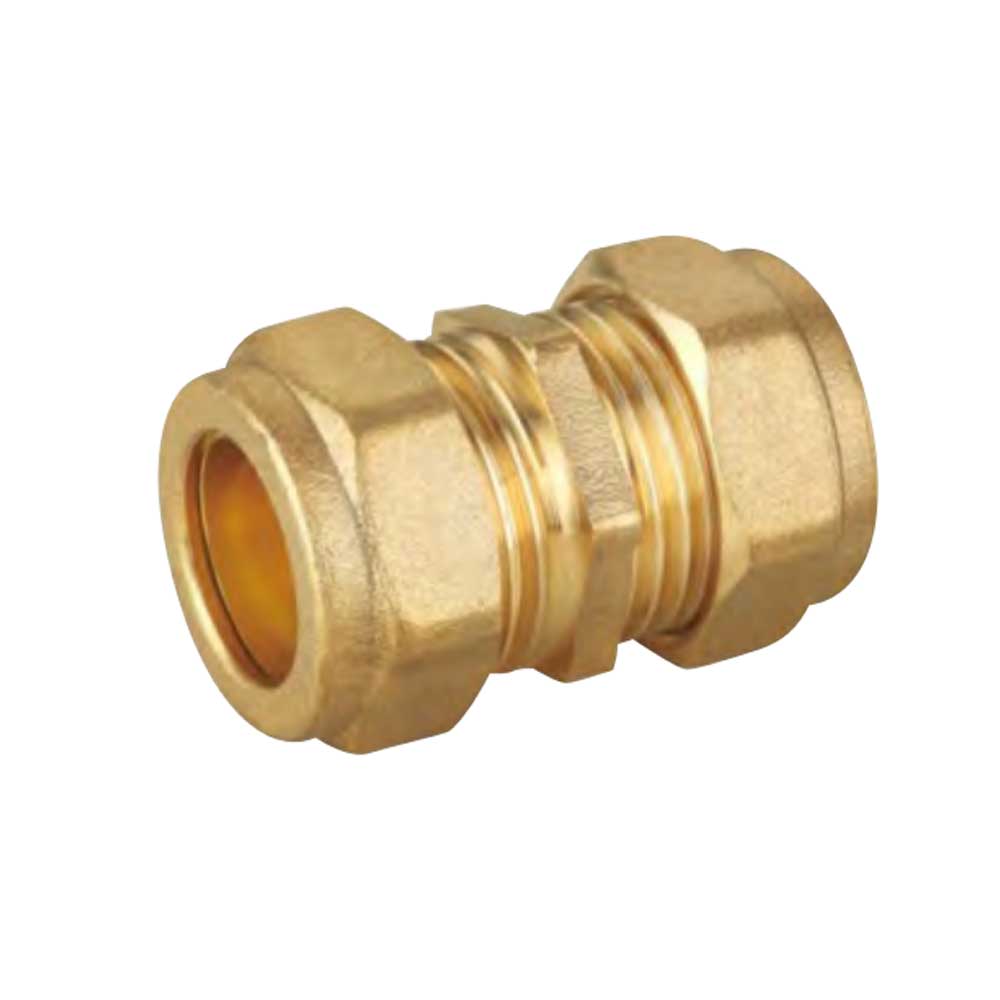

Straight Couplings

Brass Compression Fittings for Copper Tube
Straight Couplings in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-01 15*15 10 240
STDB-500-02 22*22 10 140
STDB-500-03 28*28 10 70
STDB-500-04 35*35 5 45
Reducing Tees 14 variants

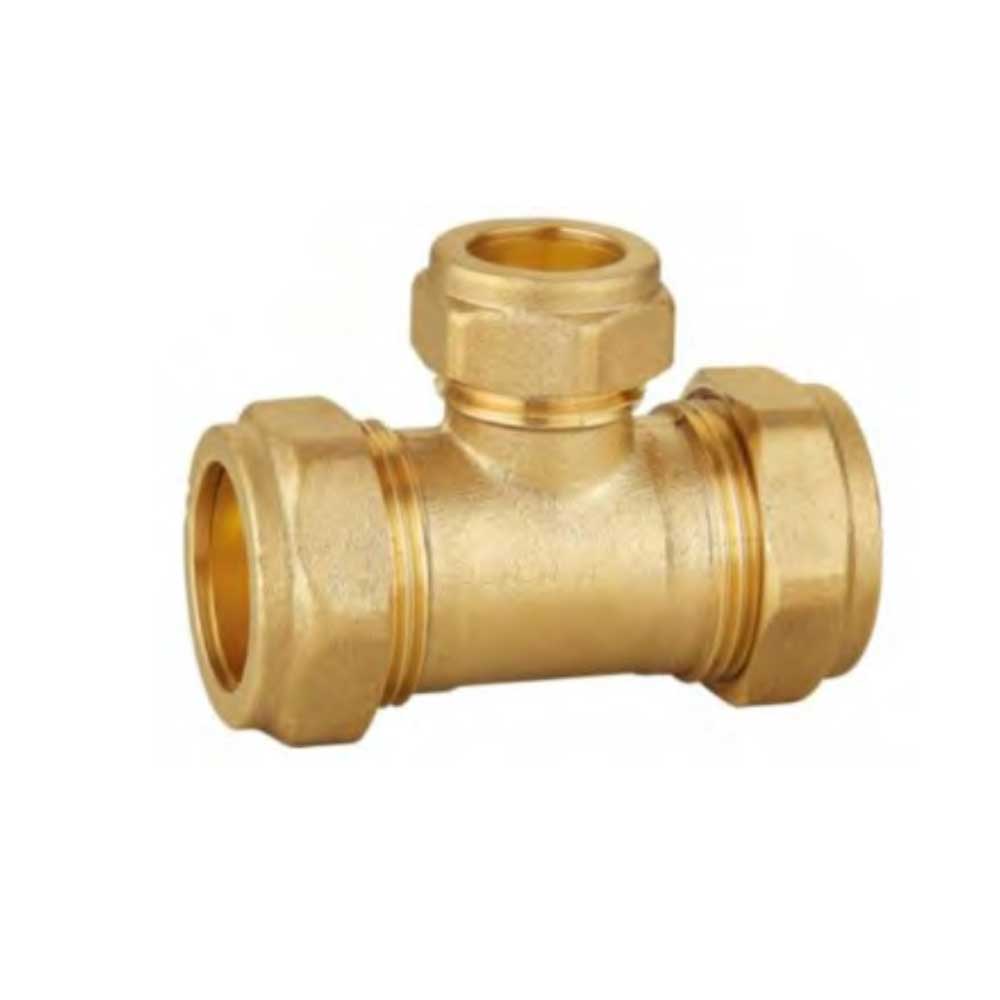

Reducing Tees

Brass Compression Fittings for Copper Tube
Reducing Tees in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-136 15*15*22 10 80
STDB-500-137 22*15*15 10 90
STDB-500-138 22*15*22 10 70
STDB-500-139 22*22*15 10 70
STDB-500-140 22*22*28 10 70
STDB-500-141 28*15*15 10 40
STDB-500-142 28*15*28 10 40
STDB-500-143 28*22*15 10 60
STDB-500-144 28*22*22 10 50
STDB-500-145 28*22*28 10 30
STDB-500-146 28*28*15 10 40
STDB-500-147 28*28*22 10 30
STDB-500-148 35*35*15 5 30
STDB-500-149 35*35*22 5 25

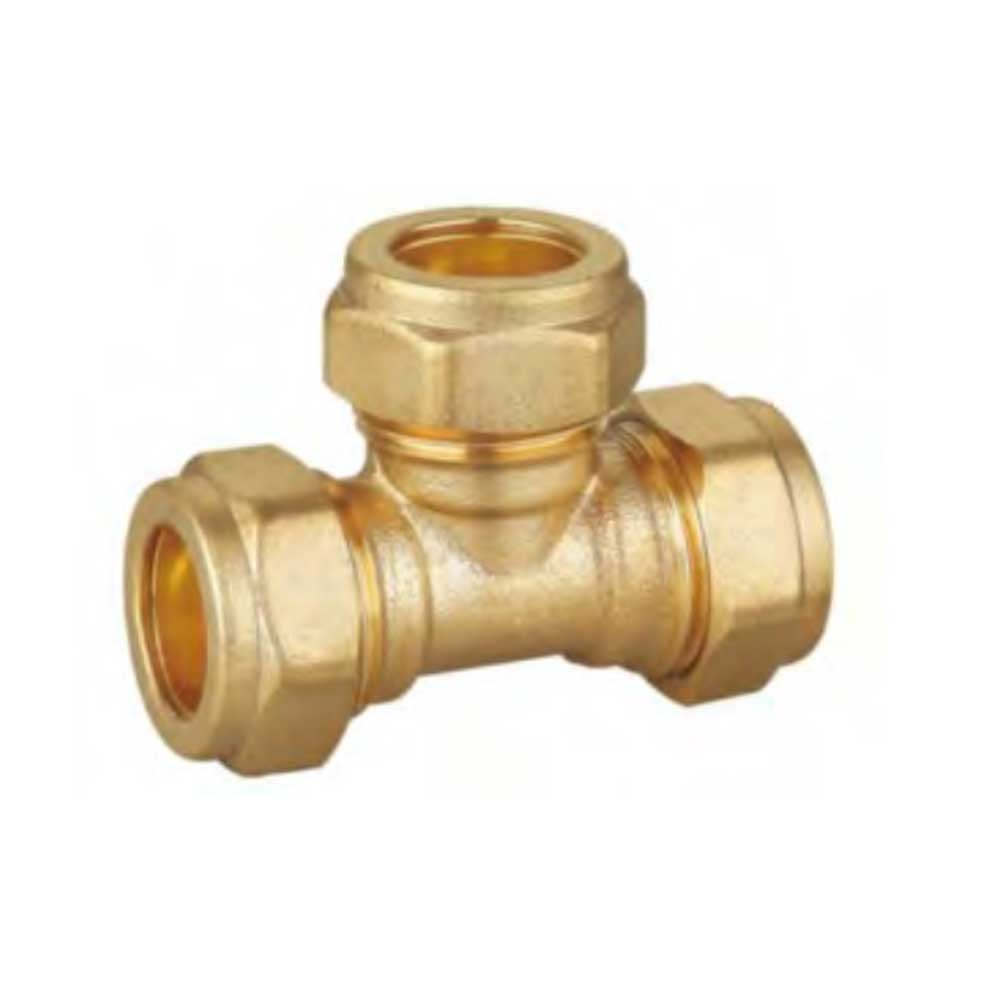

Equal Tees 4 variants

Equal Tees

Brass Compression Fittings for Copper Tube
Equal Tees in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-80 15*15*15 10 120
STDB-500-81 22*22*22 10 60
STDB-500-82 28*28*28 5 35
STDB-500-83 35*35*35 1 20

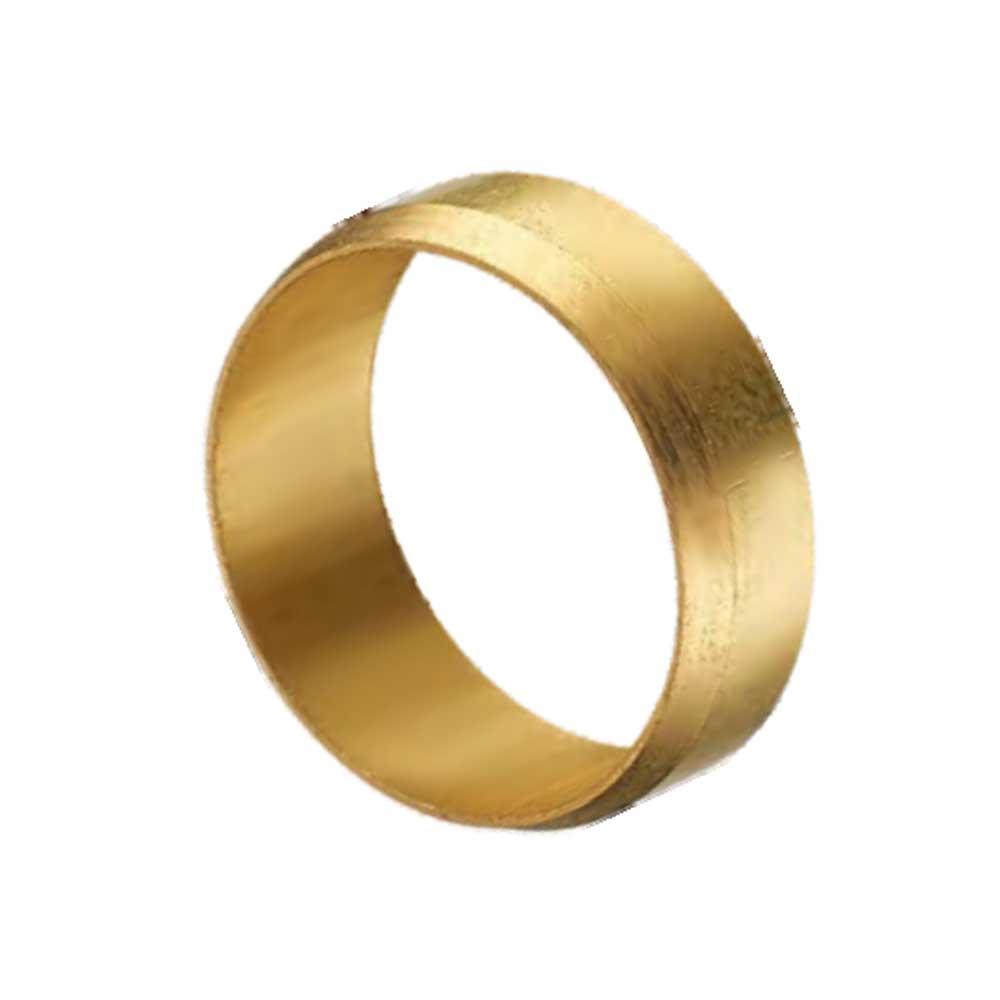

Compression Oring 4 variants

Compression Oring

Brass Compression Fittings for Copper Tube
Compression Oring in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-127 15 600 4800
STDB-500-128 22 400 3200
STDB-500-129 28 300 2400
STDB-500-130 35 100 800

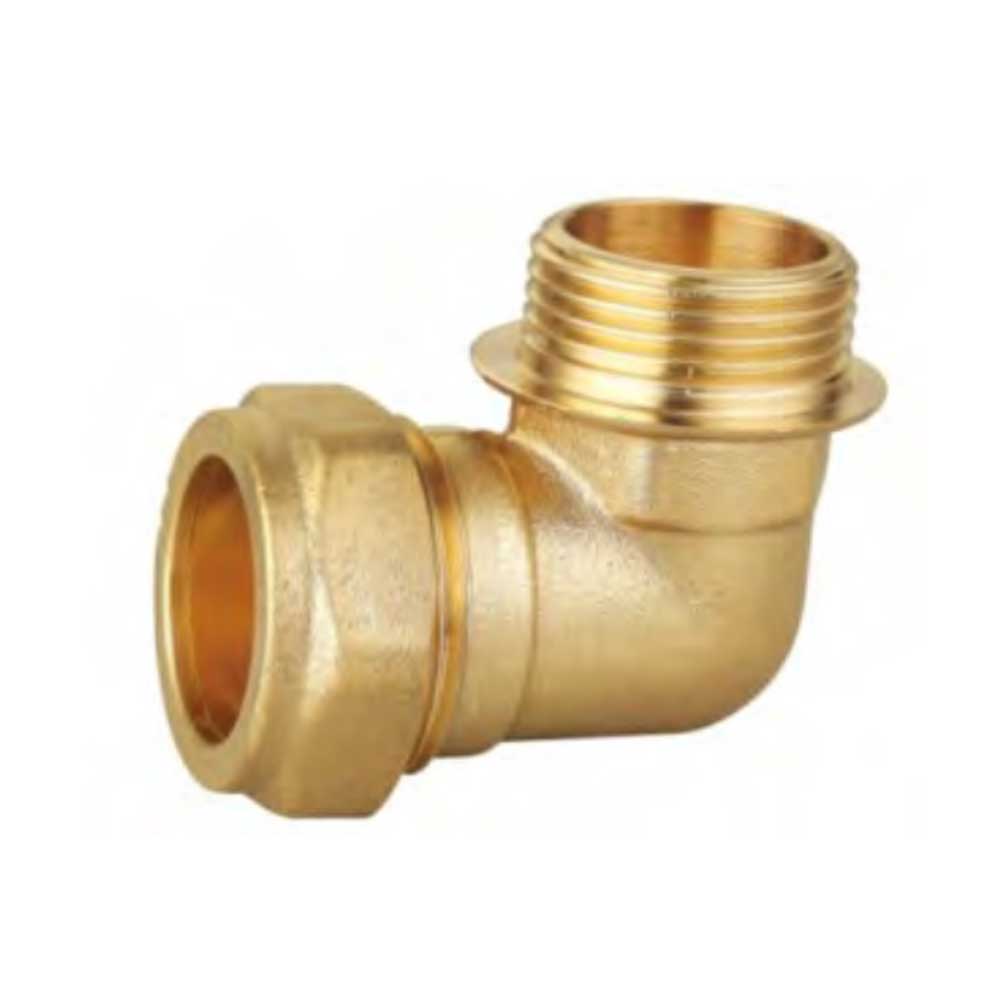

Male Elbows 7 variants

Male Elbows

Brass Compression Fittings for Copper Tube
Male Elbows in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-106 15*1/2''M 10 200
STDB-500-107 15*3/4''M 10 200
STDB-500-108 22*1/2''M 10 100
STDB-500-109 22*3/4''M 10 100
STDB-500-110 22*1''M 10 70
STDB-500-111 28*1''M 5 60
STDB-500-112 35*1-1/4''M 5 30
Female Elbows 7 variants

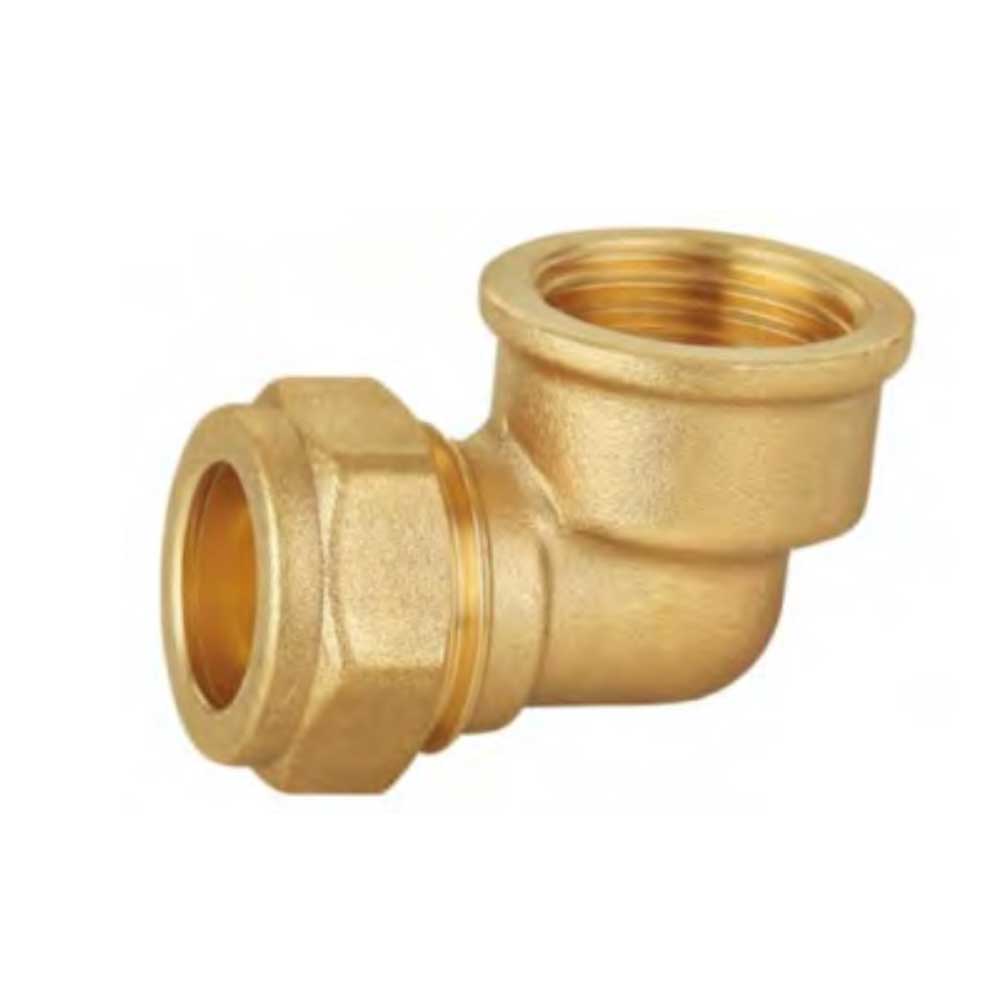

Female Elbows

Brass Compression Fittings for Copper Tube
Female Elbows in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-89 15*1/2''F 10 200
STDB-500-90 15*3/4''F 10 200
STDB-500-91 22*1/2''F 10 100
STDB-500-92 22*3/4''F 10 100
STDB-500-93 22*1''F 10 60
STDB-500-94 28*1''F 5 60
STDB-500-95 35*1-1/4''F 5 30

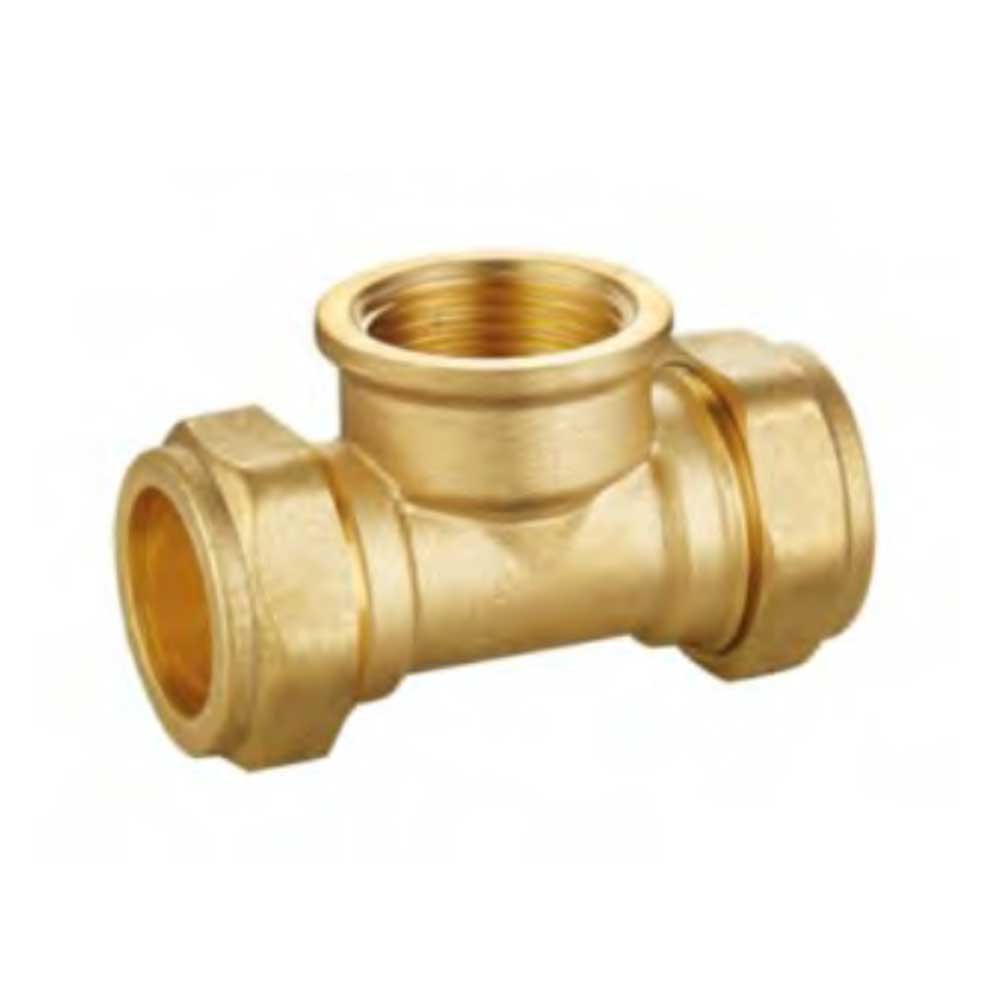

Female Tees 6 variants

Female Tees

Brass Compression Fittings for Copper Tube
Female Tees in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-163 15*15*1/2''F 10 120
STDB-500-164 22*22*1/2''F 10 80
STDB-500-165 22*22*3/4''F 10 60
STDB-500-166 28*28*1/2''F 5 40
STDB-500-167 28*28*3/4''F 5 40
STDB-500-168 28*28*1''F 5 30

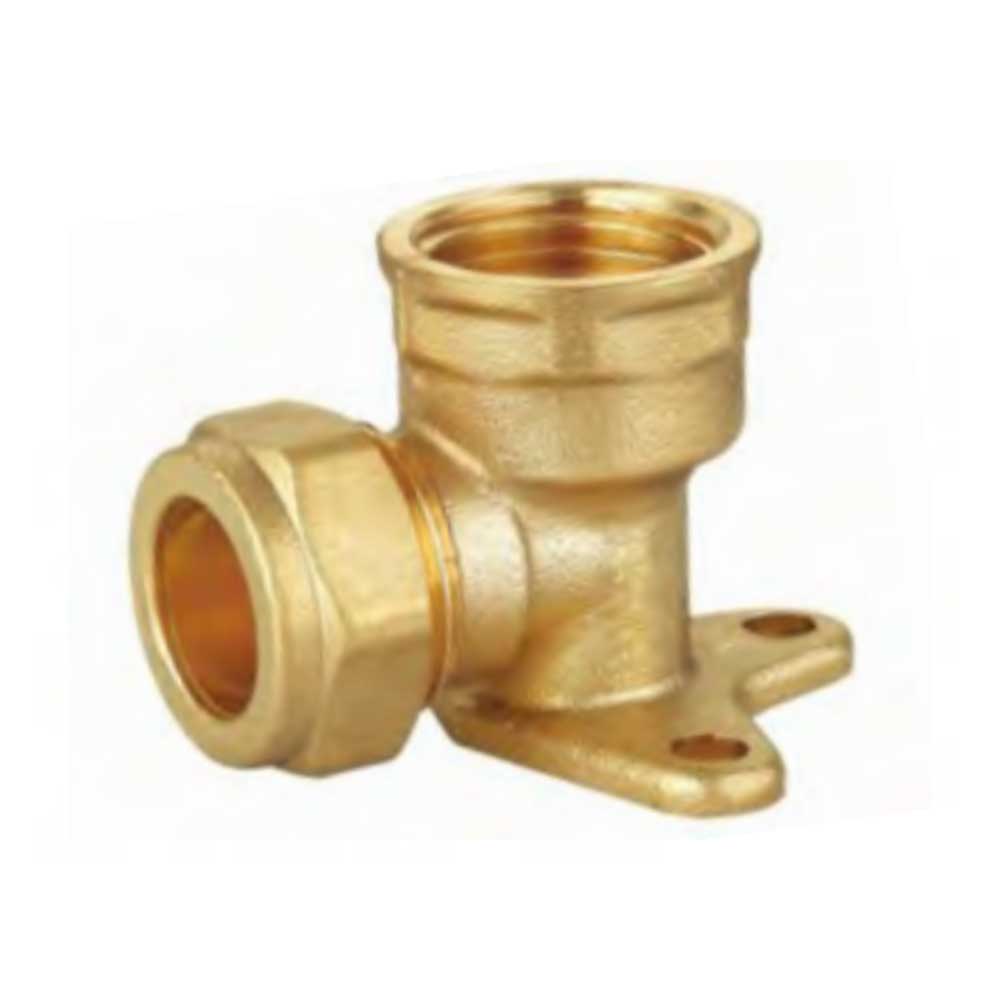

Wallplate Elbows 3 variants

Wallplate Elbows

Brass Compression Fittings for Copper Tube
Wallplate Elbows in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-173 15*1/2''F 10 100
STDB-500-174 22*1/2''F 10 60
STDB-500-175 22*3/4''F 10 50
Water Tank Connectors 4 variants

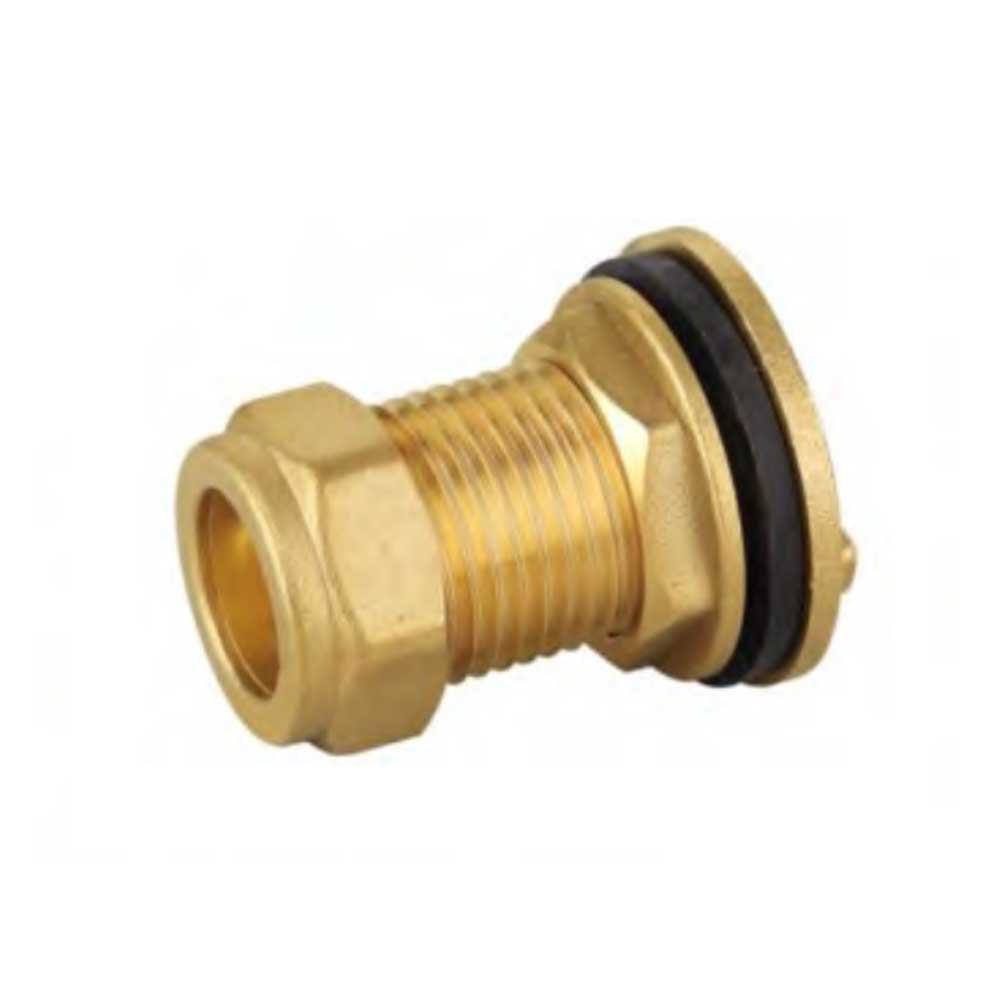

Water Tank Connectors

Brass Compression Fittings for Copper Tube
Water Tank Connectors in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-176 15mm 10 150
STDB-500-177 22mm 10 100
STDB-500-178 28mm 10 60
STDB-500-179 35mm 5 40

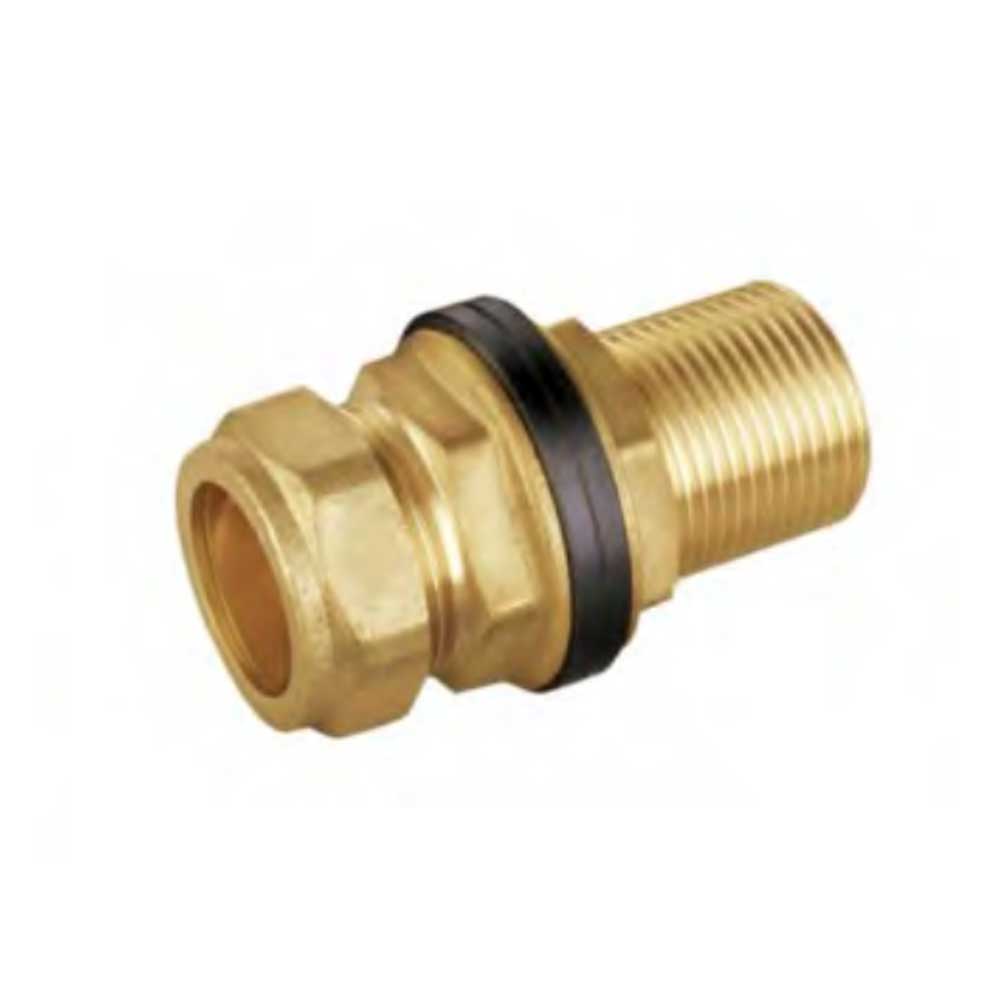

Water Tank Connectors Male 4 variants

Water Tank Connectors Male

Brass Compression Fittings for Copper Tube
Water Tank Connectors Male in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-182 15*1/2''M 10 100
STDB-500-183 22*3/4''M 10 60
STDB-500-184 28*1''M 10 40
STDB-500-185 35*1-1/4''M 5 25

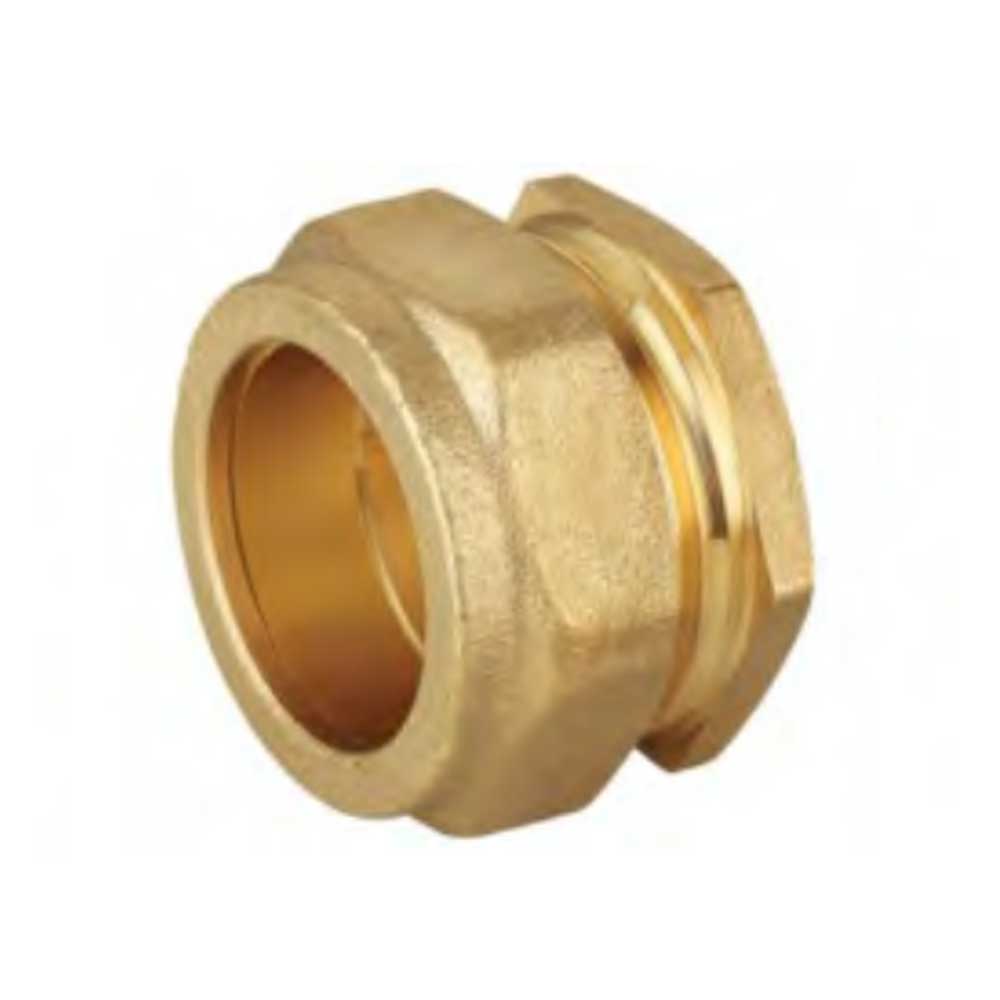

Stop Ends 4 variants

Stop Ends

Brass Compression Fittings for Copper Tube
Stop Ends in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-188 15 10 400
STDB-500-189 22 10 230
STDB-500-190 28 10 130
STDB-500-191 35 5 60
Straight Tap Connectors 3 variants

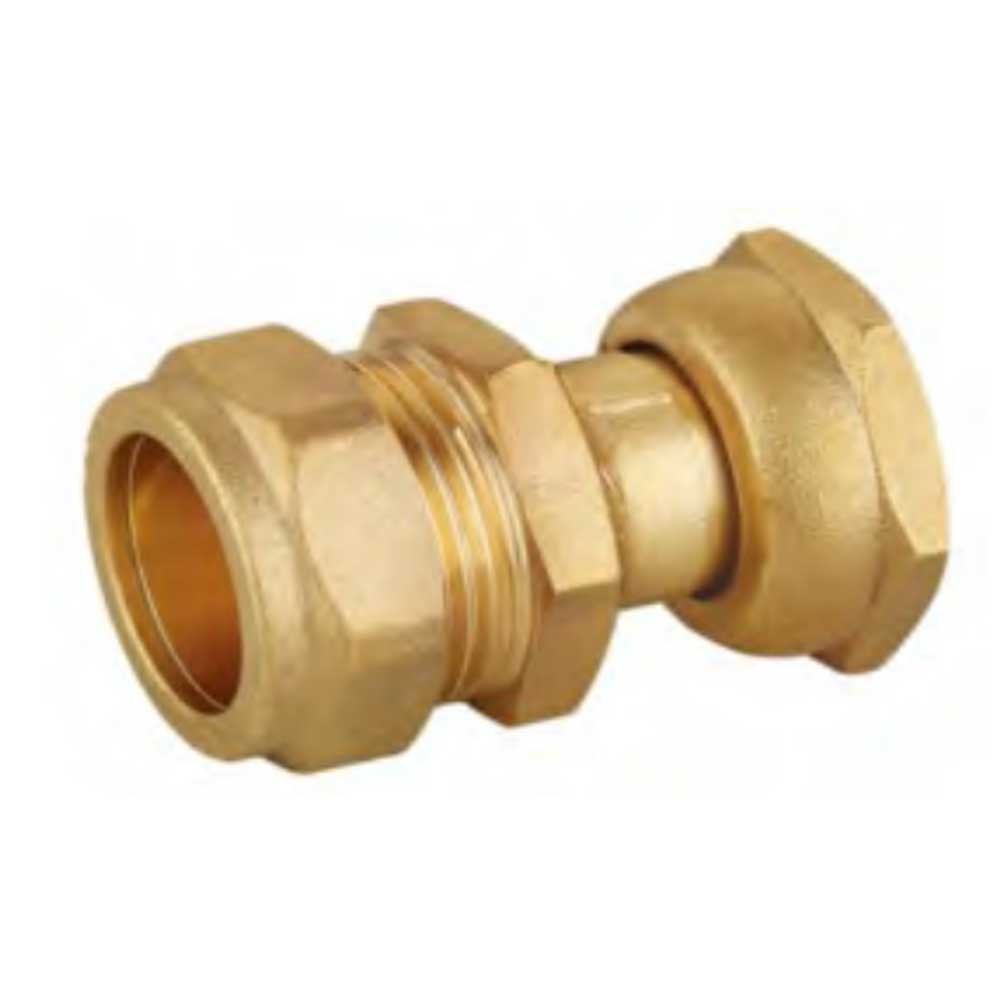

Straight Tap Connectors

Brass Compression Fittings for Copper Tube
Straight Tap Connectors in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-194 15*1/2''F 10 180
STDB-500-195 15*3/4''F 10 140
STDB-500-196 22*3/4''F 10 100

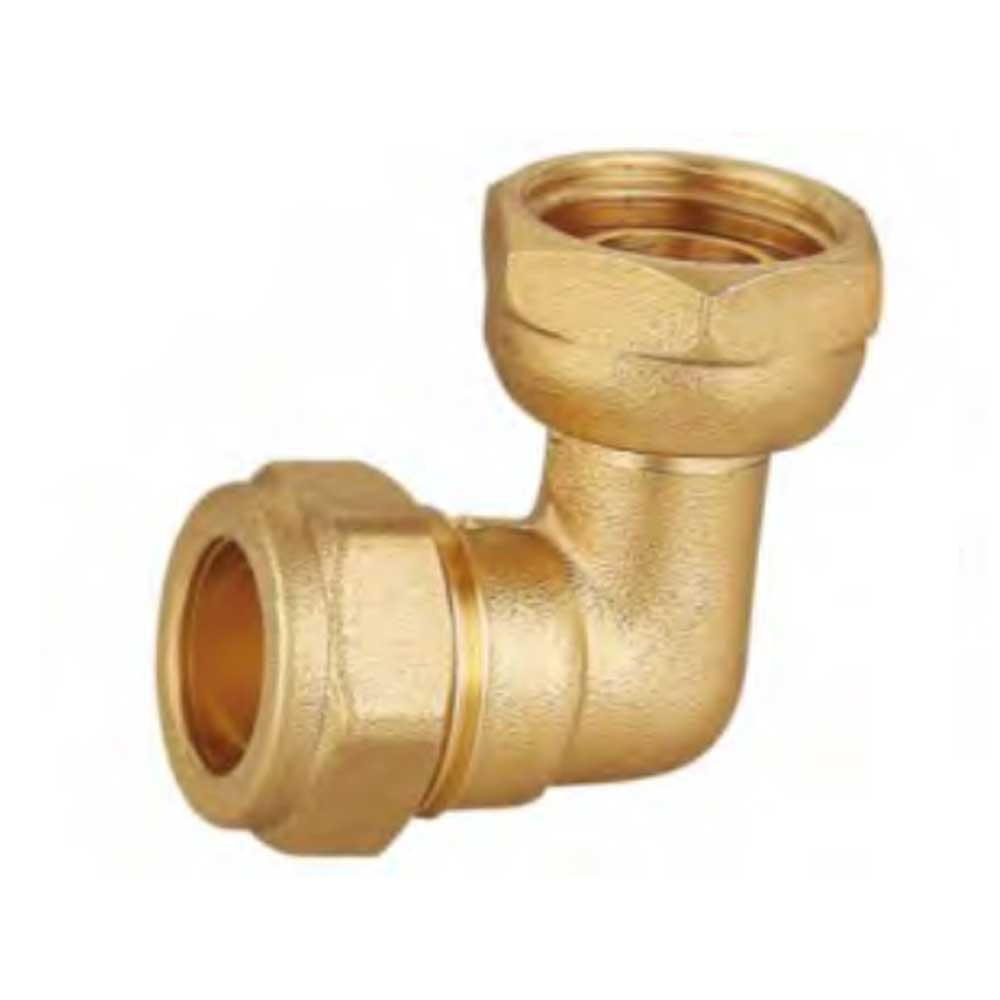

Bend Tap Connectors 2 variants

Bend Tap Connectors

Brass Compression Fittings for Copper Tube
Bend Tap Connectors in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-197 15*1/2''F 10 200
STDB-500-198 22*3/4''F 5 100

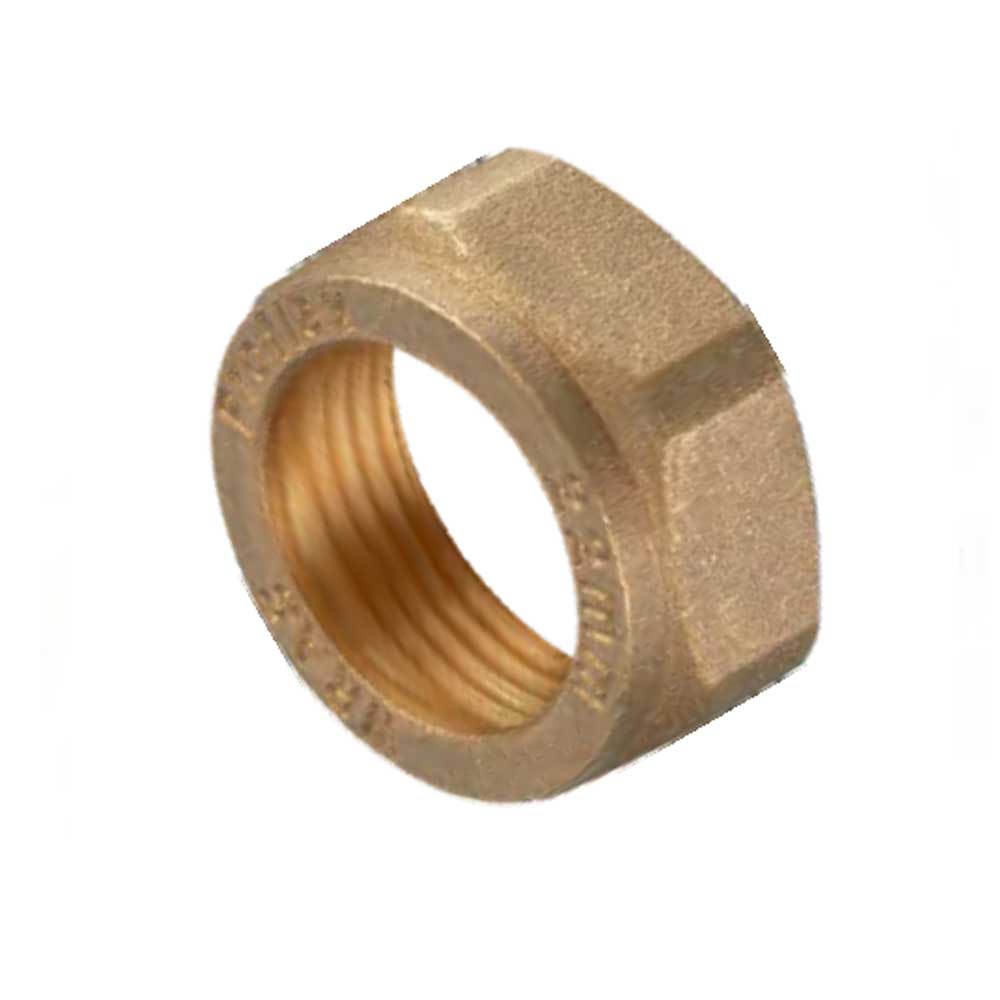

Compression Nuts 4 variants

Compression Nuts

Brass Compression Fittings for Copper Tube
Compression Nuts in Brass Compression Fittings for Copper Tube
Item No. SIZE PCS/BAG PCS/CARTON
STDB-500-199 15 50 500
STDB-500-200 22 50 500
STDB-500-201 28 25 250
STDB-500-202 35 10 100
