Our Products

Complete Range

Precision Brass Components

Browse by category to view the complete product range, technical details, packaging information, and the corresponding catalog image for each fitting.

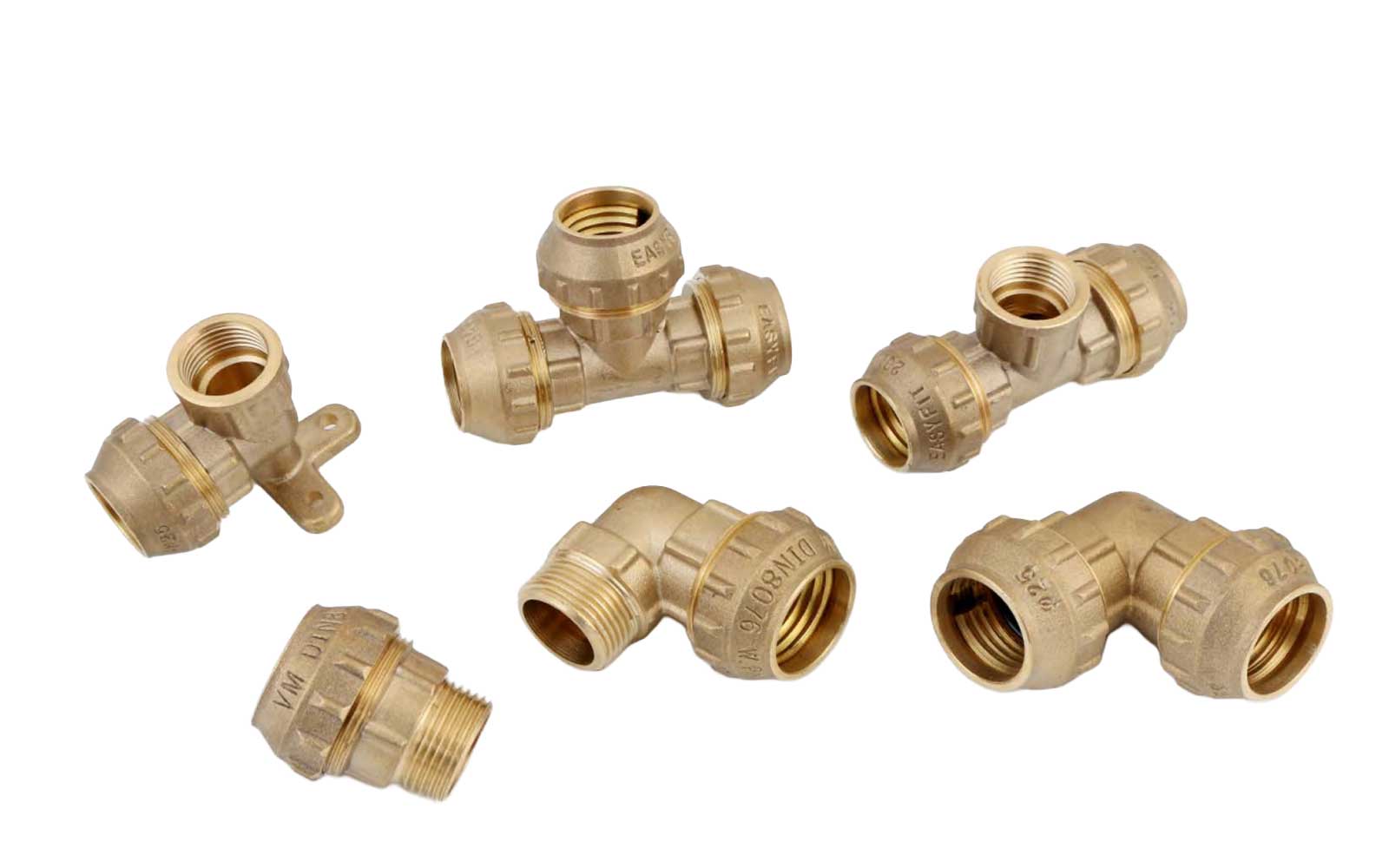

Brass Compression Fittings for PE Pipe

Brass Compression Fittings for PE Pipe

♦ For use with PE pipe connecting produced according to DIN8076
♦ Extensively used in Spain
♦ Brass Material CW617N in accordance with EN12164
♦ Other special alloy required by Customers
♦ Working Pressure 1.6MPa / 16 Bar
♦ Working Temperature -10°C to 110°C
♦ Original color Finish without burrs

Products In This Category

9 main products listed. All ITEM NO. variant information is shown directly below each product.

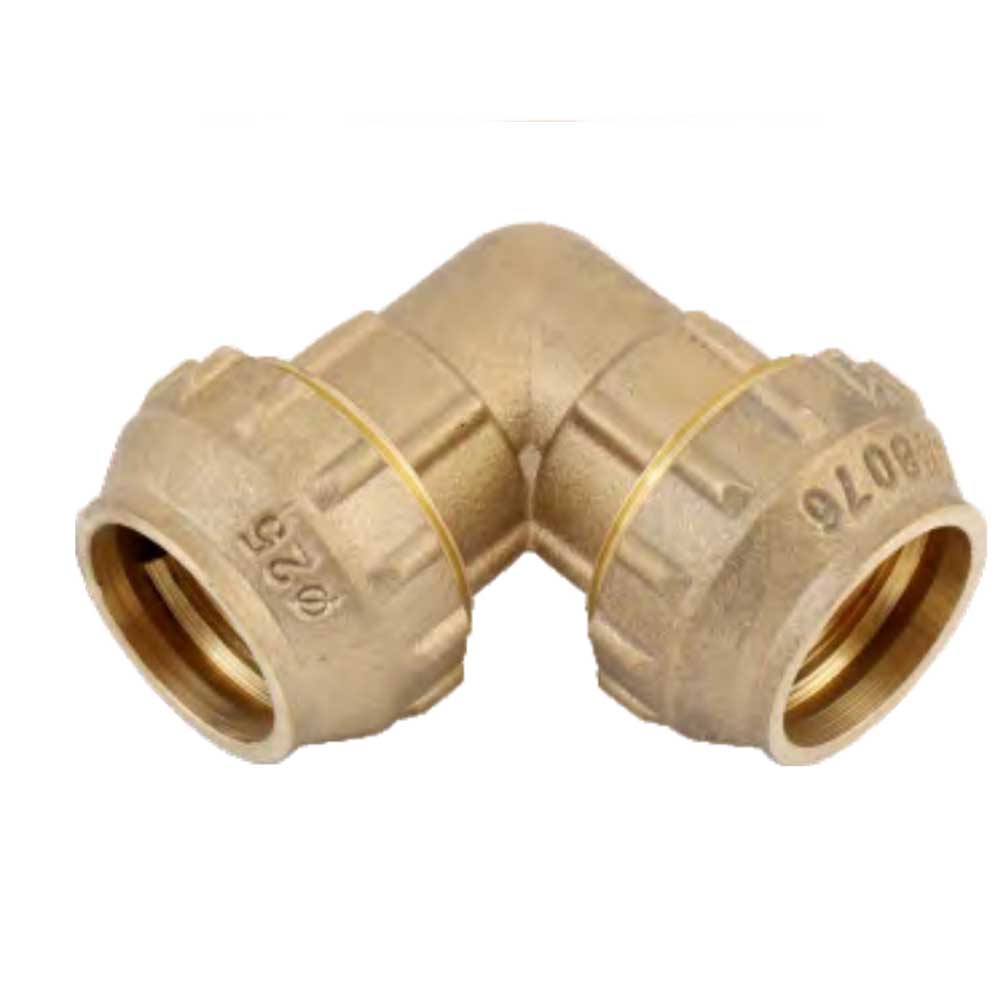

Elbow 6 variants

Elbow

Brass Compression Fittings for PE Pipe
Elbow in Brass Compression Fittings for PE Pipe
Item No. SIZE PCS/BAG PCS/CARTON
STDB-700-25 20*20 10 70
STDB-700-26 25*25 10 40
STDB-700-27 32*32 5 25
STDB-700-28 40*40 2 14
STDB-700-29 50*50 1 10
STDB-700-30 63*63 1 8

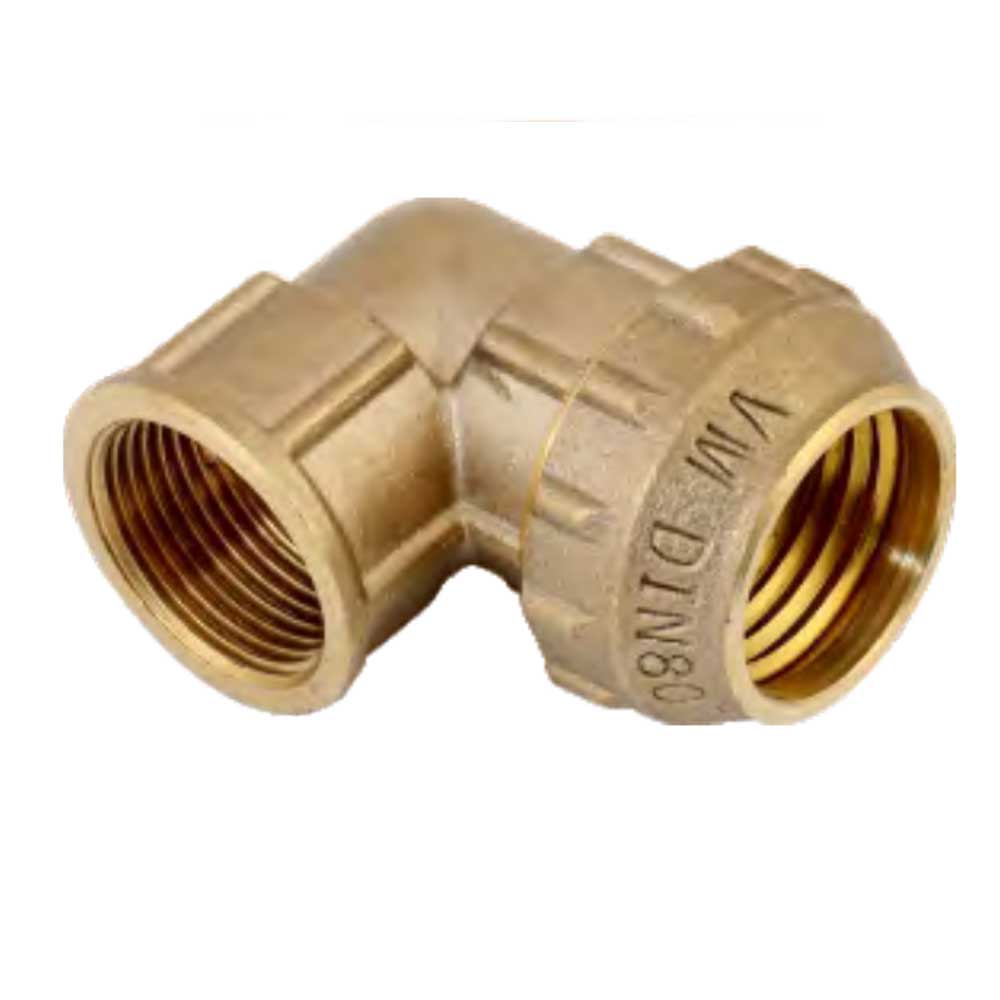

Female Elbow 6 variants

Female Elbow

Brass Compression Fittings for PE Pipe
Female Elbow in Brass Compression Fittings for PE Pipe
Item No. SIZE PCS/BAG PCS/CARTON
STDB-700-41 20*1/2"F 10 90
STDB-700-42 25*3/4F 10 50
STDB-700-43 32*1"F 5 35
STDB-700-44 40*1-1/4"F 2 24
STDB-700-45 50*1-1/2"F 1 15
STDB-700-46 63*2"F 1 12

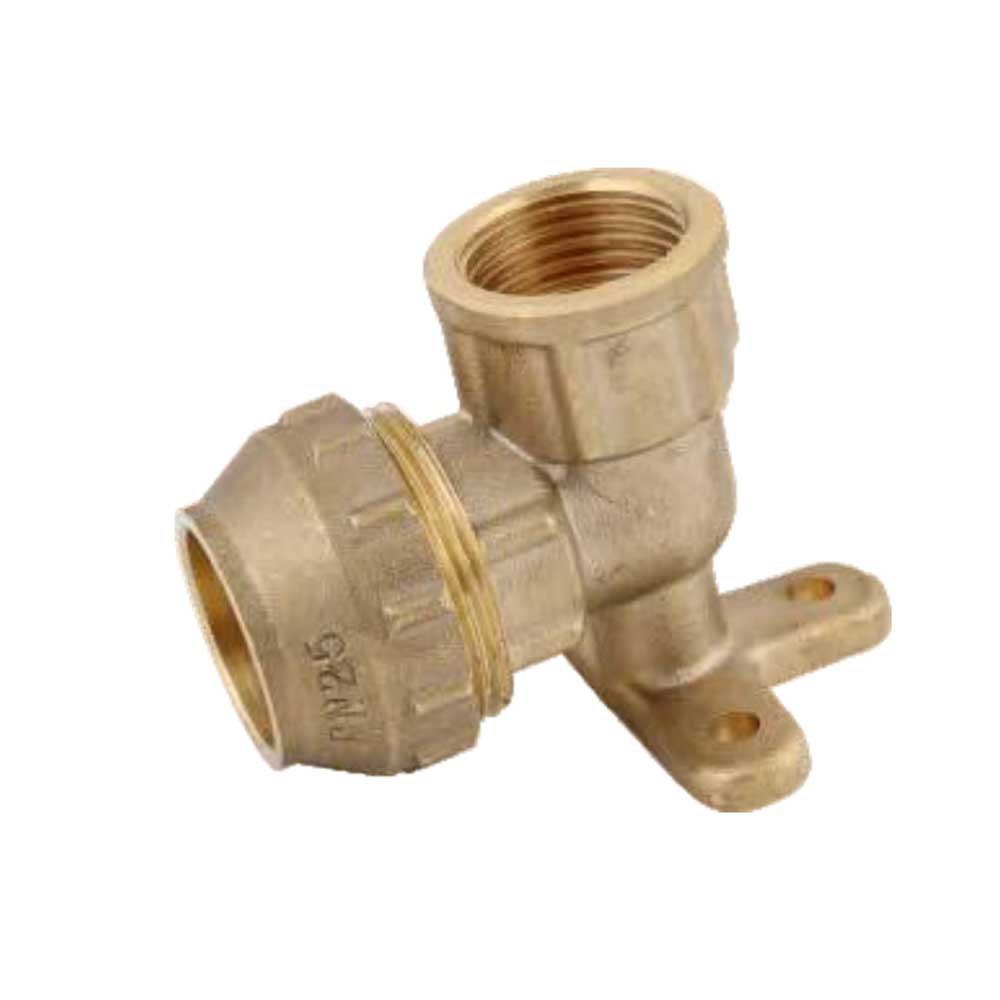

Female Elbow With Wallplated 3 variants

Female Elbow With Wallplated

Brass Compression Fittings for PE Pipe
Female Elbow With Wallplated in Brass Compression Fittings for PE Pipe
Item No. SIZE PCS/BAG PCS/CARTON
STDB-700-65 20*1/2"F 10 60
STDB-700-66 25*3/4F 10 40
STDB-700-67 32*1"F 5 25

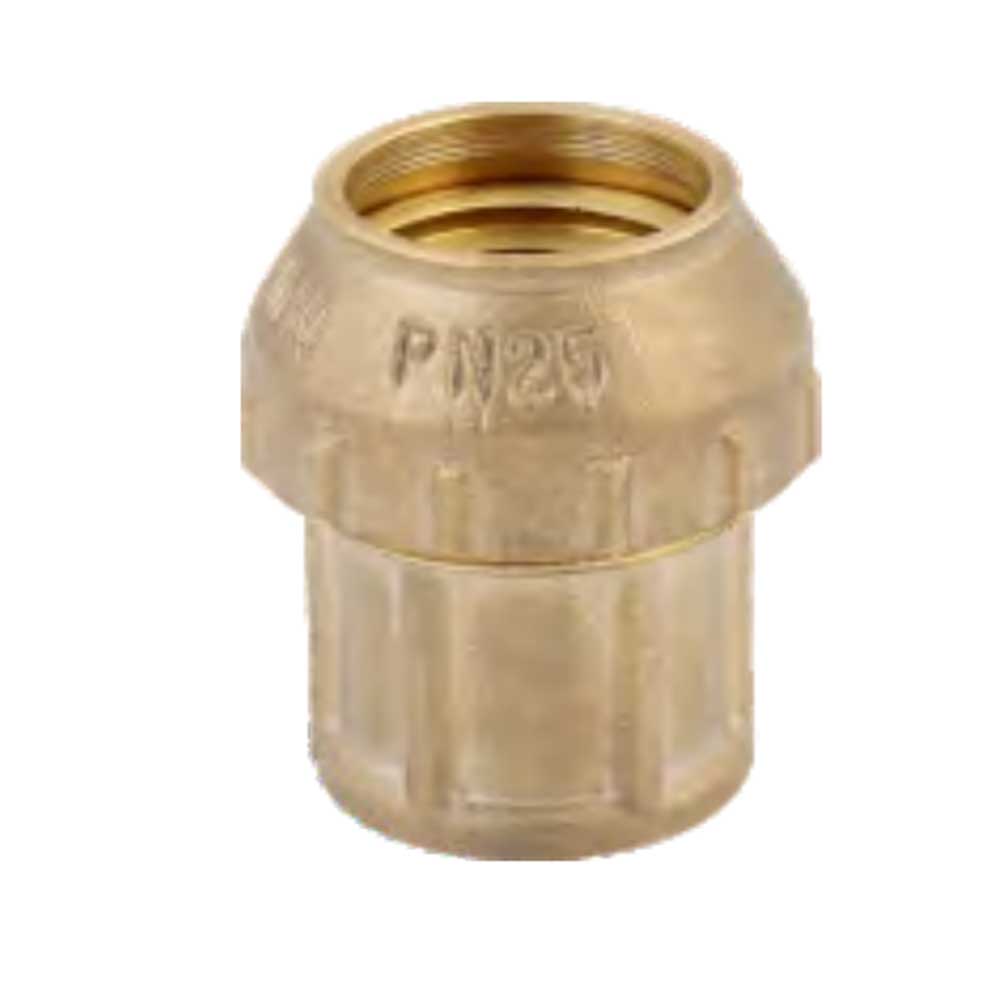

Female Straight 6 variants

Female Straight

Brass Compression Fittings for PE Pipe
Female Straight in Brass Compression Fittings for PE Pipe
Item No. SIZE PCS/BAG PCS/CARTON
STDB-700-09 20*1/2"F 10 120
STDB-700-10 25*3/4"F 10 70
STDB-700-11 32*1"F 5 45
STDB-700-12 40*1-1/4"F 2 30
STDB-700-13 50*1-1/2"F 1 25
STDB-700-14 63*2"F 1 25

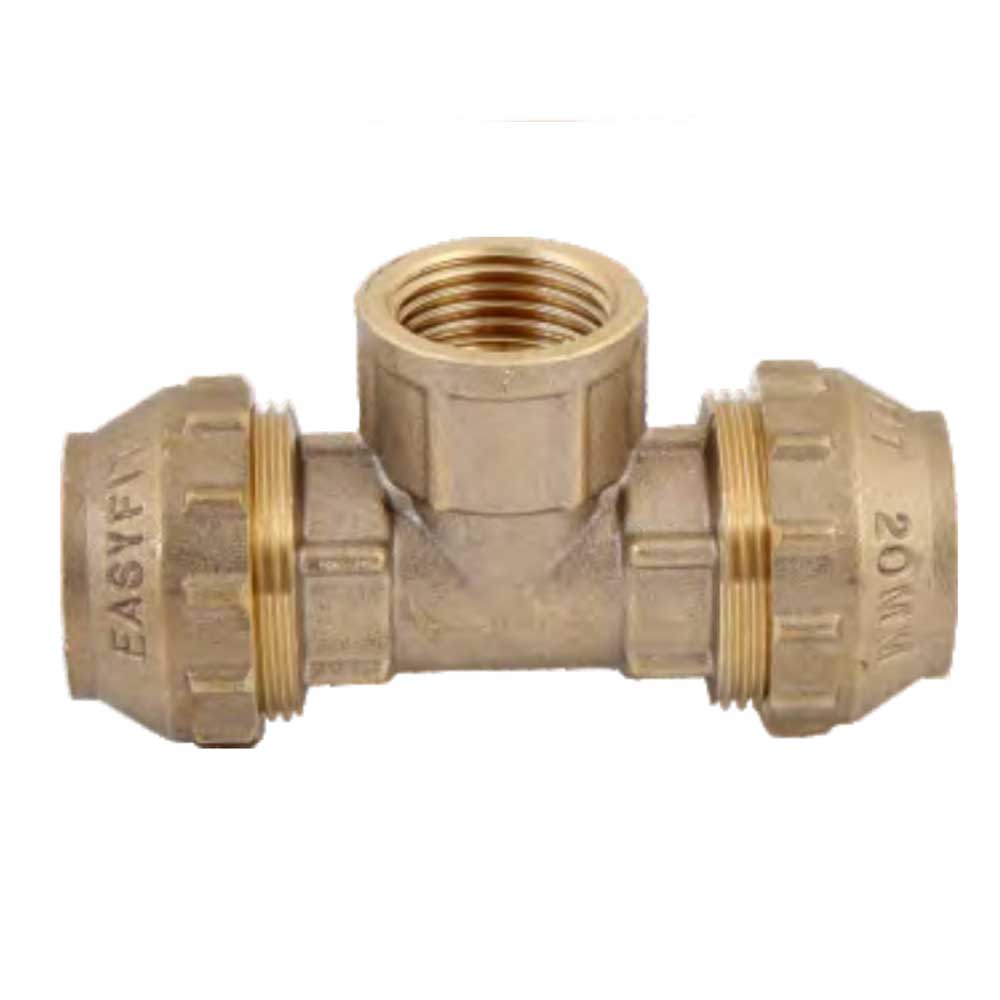

Female Tee 6 variants

Female Tee

Brass Compression Fittings for PE Pipe
Female Tee in Brass Compression Fittings for PE Pipe
Item No. SIZE PCS/BAG PCS/CARTON
STDB-700-57 20*1/2"F 10 60
STDB-700-58 25*3/4"F 10 30
STDB-700-59 32*1F 5 20
STDB-700-60 40*1 1/4"F 2 10
STDB-700-61 50*1 1/2"F 1 8
STDB-700-62 63*2"F 1 6

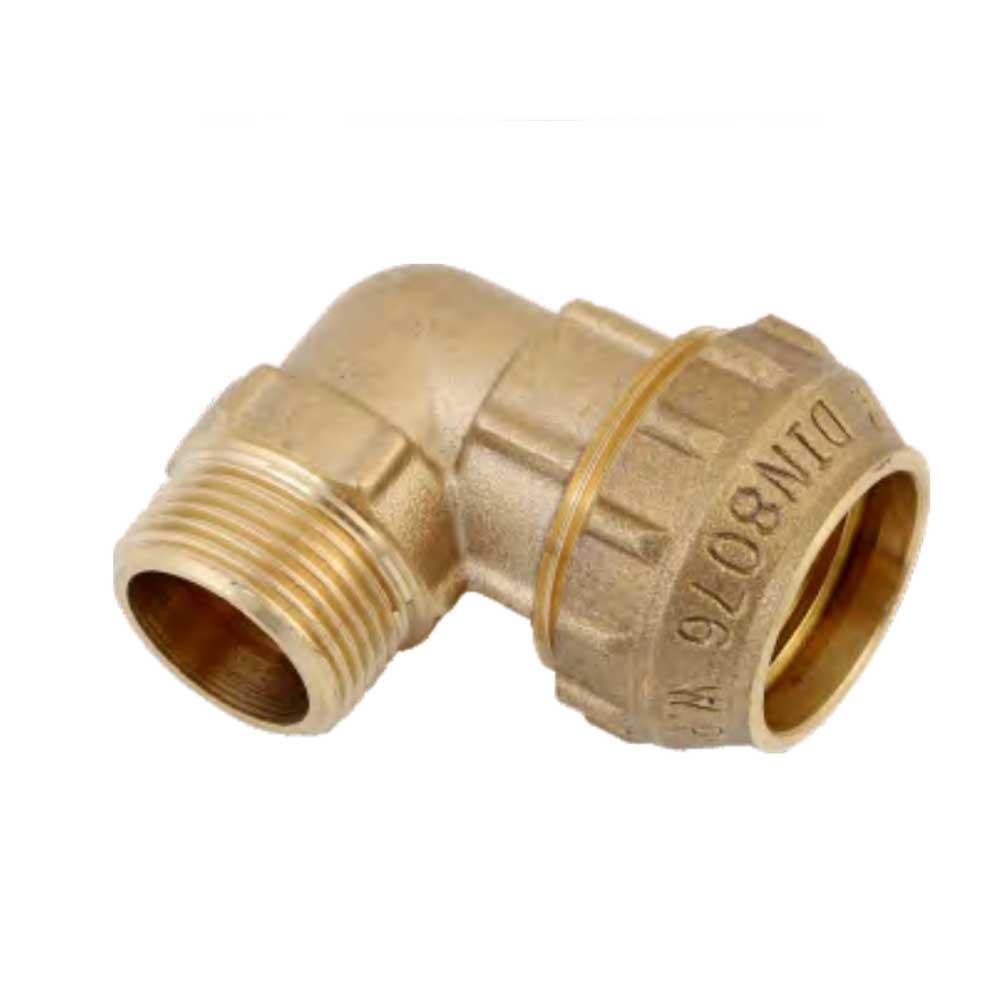

Male Elbow 6 variants

Male Elbow

Brass Compression Fittings for PE Pipe
Male Elbow in Brass Compression Fittings for PE Pipe
Item No. SIZE PCS/BAG PCS/CARTON
STDB-700-33 20*1/2"F 10 90
STDB-700-34 25*3/4"F 10 60
STDB-700-35 32*1"F 5 40
STDB-700-36 40*1-1/4"F 2 22
STDB-700-37 50*1-1/2"F 1 15
STDB-700-38 63*2"F 1 12

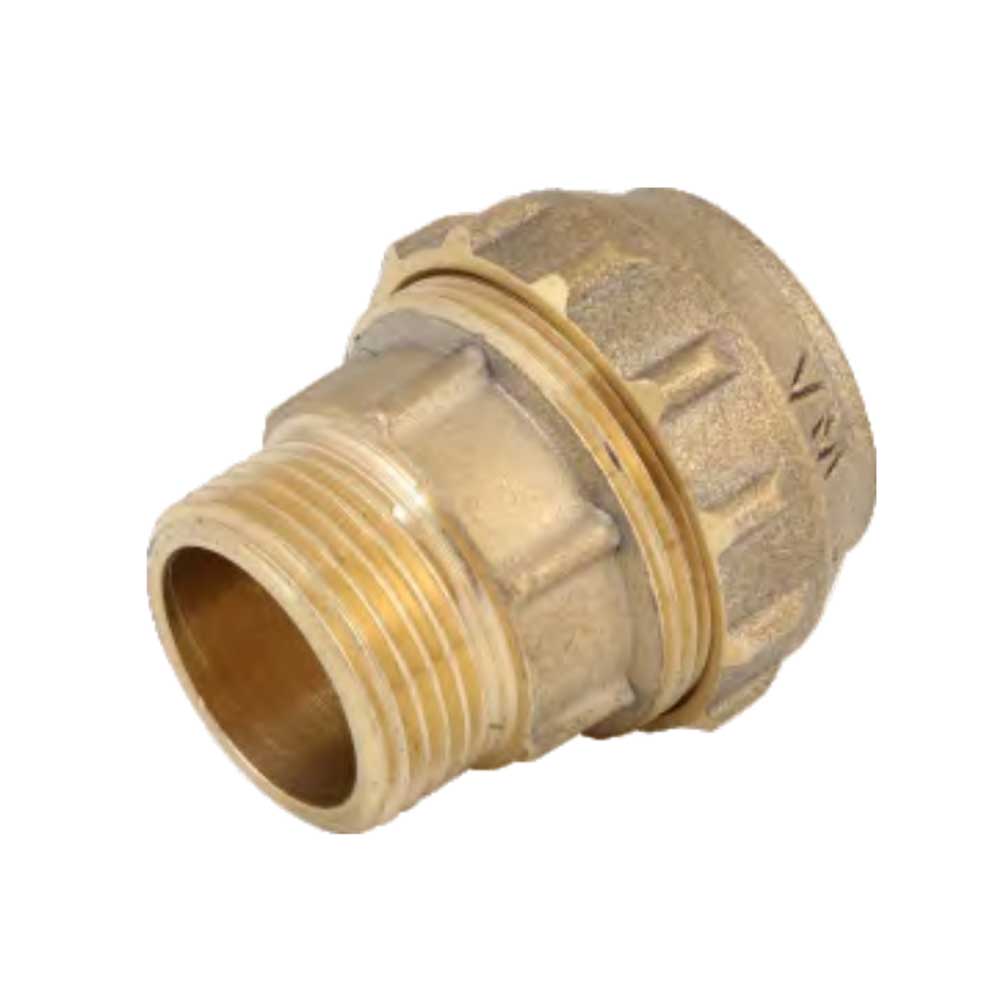

Male Straight 6 variants

Male Straight

Brass Compression Fittings for PE Pipe
Male Straight in Brass Compression Fittings for PE Pipe
Item No. SIZE PCS/BAG PCS/CARTON
STDB-700-01 20*1/2"F 10 140
STDB-700-02 25*3/4"F 10 90
STDB-700-03 32*1"F 5 50
STDB-700-04 40*1-1/4"F 2 36
STDB-700-05 50*1-1/2"F 1 25
STDB-700-06 63*2"F 1 20

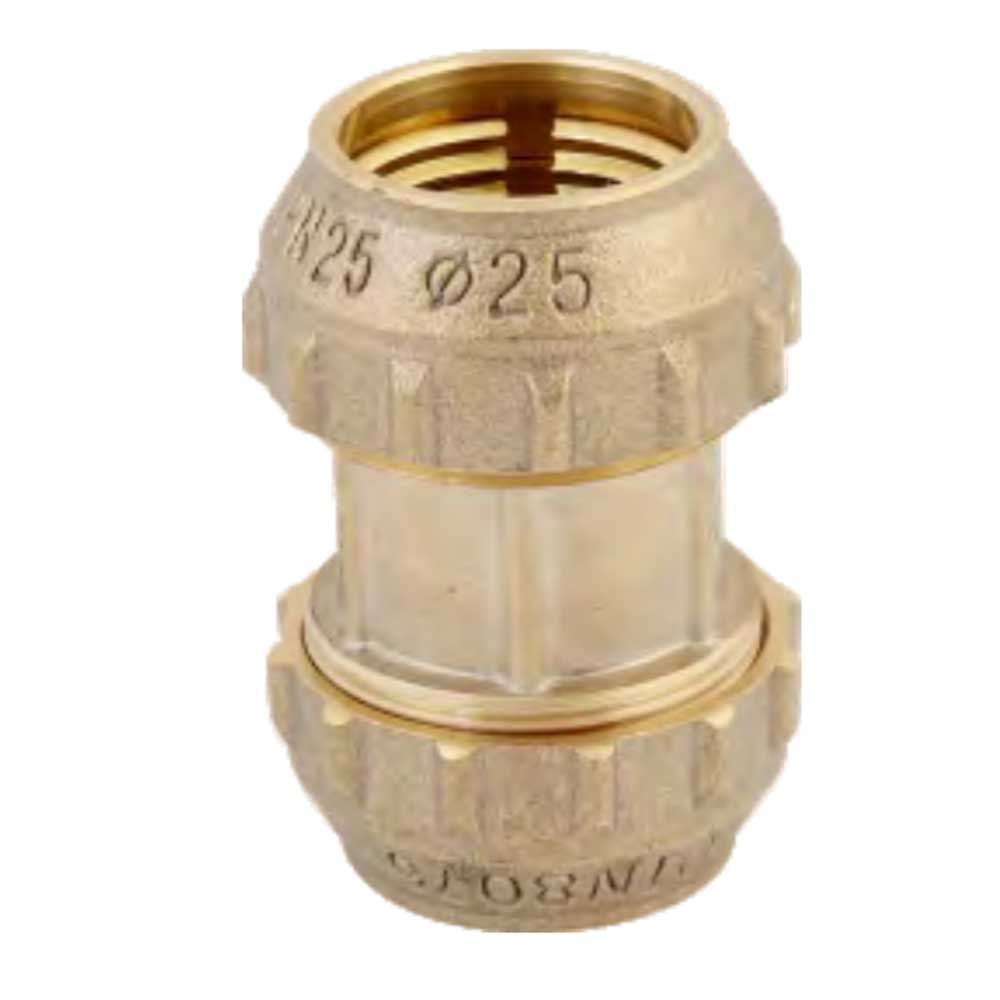

Straight 6 variants

Straight

Brass Compression Fittings for PE Pipe
Straight in Brass Compression Fittings for PE Pipe
Item No. SIZE PCS/BAG PCS/CARTON
STDB-700-17 20*20 10 80
STDB-700-18 25*25 10 50
STDB-700-19 32*32 5 30
STDB-700-20 40*40 2 20
STDB-700-21 50*50 1 13
STDB-700-22 63*63 1 14

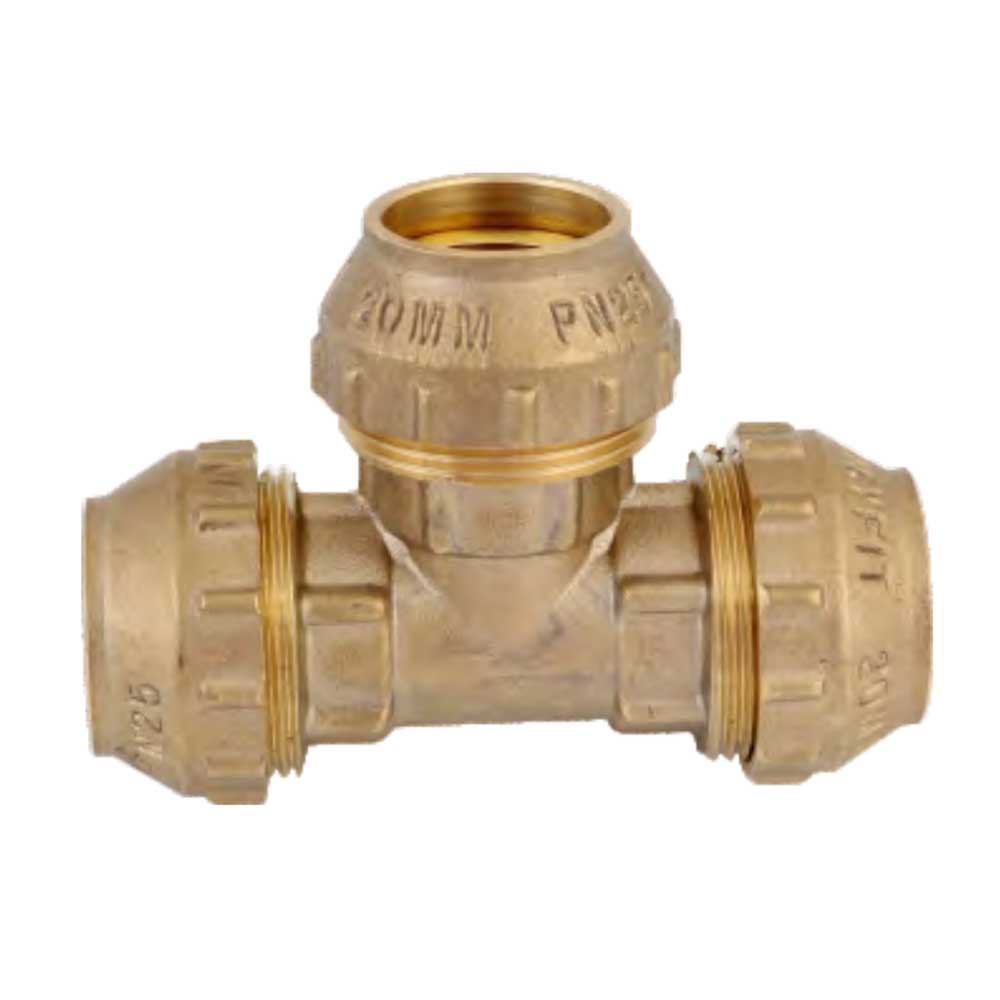

Tee 6 variants

Tee

Brass Compression Fittings for PE Pipe
Tee in Brass Compression Fittings for PE Pipe
Item No. SIZE PCS/BAG PCS/CARTON
STDB-700-49 20*20*20 10 40
STDB-700-50 25*25*25 10 30
STDB-700-51 32*32*32 5 15
STDB-700-52 40*40*40 2 10
STDB-700-53 50*50*50 1 8
STDB-700-54 63*63*63 1 6
